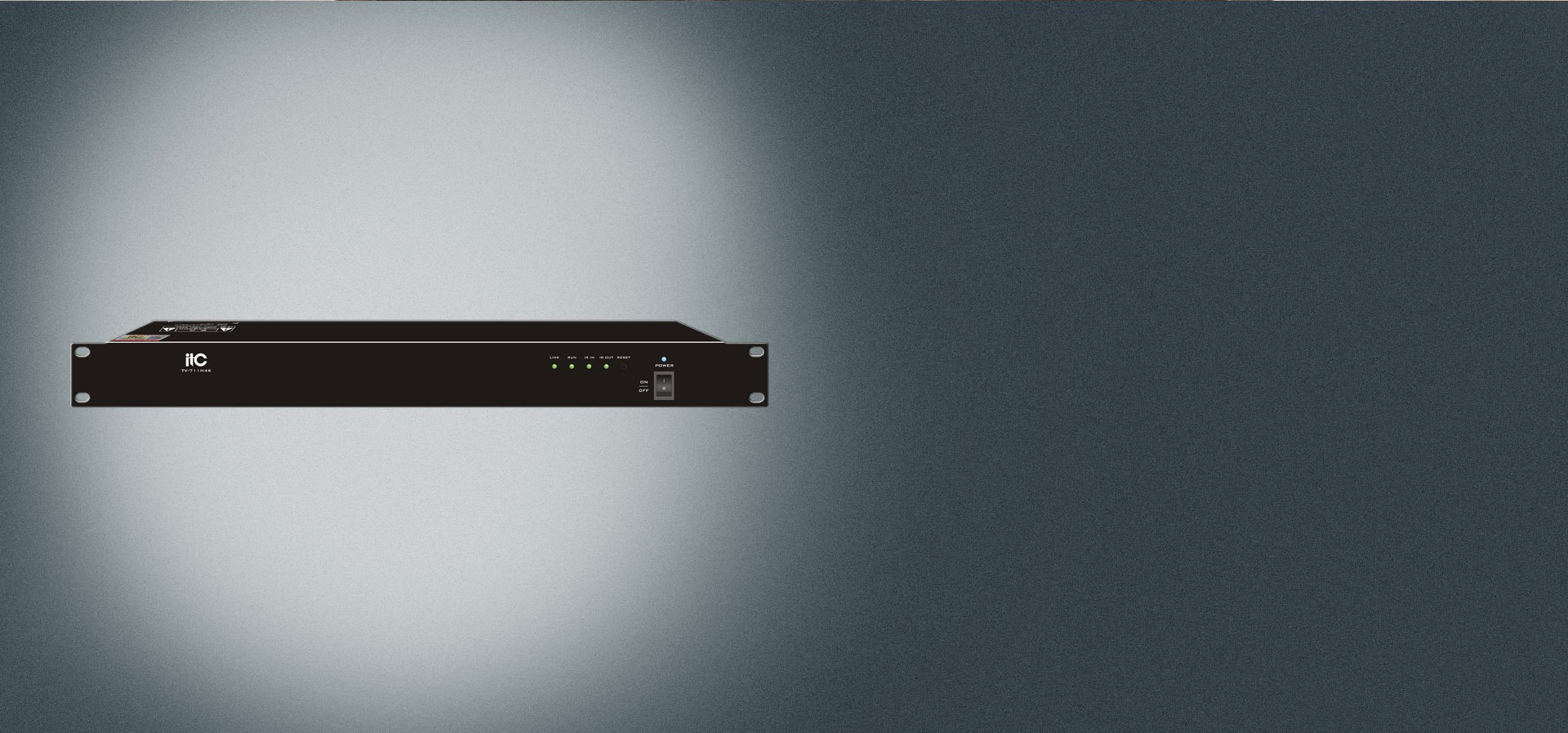

It adopts a high-performance multifunctional UHD input box that can collect and encode audiovisual signals and send them to the output box through the network. It supports high-performance H.264 and H.265 video encoding, KVM and central control functions. It adopts rack-mounted design.


  • Adopt 1U rack mounted design, beautiful and high-end appearance.
  • Adopt distributed architecture. When any node in the system fails, it will not affect the normal operation of other nodes.
  • Adopt ultra-low power consumption design. Support dual power supply of POE and adapter. The maximum power consumption is only 7W.
  • Adopt H.265 video coding technology to double the compression efficiency and save about 50% of bandwidth and storage; compatible with H.264 video coding.
  • Support fiber/network port double backup, ensure system stability, and meet the requirement of long-distance transmission.
  • Support adaptive acquisition and video encoding of different resolution videos, UHD visual effects, realistic picture quality, up to 4K resolution.

Product Detail

Processing capacityMaximum resolution is 3840 * 2160P30
Codec capabilitiesSupport H.264 / H.265 video encoding, AAC-LC audio encoding
Video interfaces1 × HDMI IN, 1 × HDMI OUT
Audio interface1 × 3.5mm stereo audio input
Audio input sensitivity775mV
USB interfaces1 × USB (KVM interface), 1 × USB3.0 (system upgrade)
Network port1 × RJ45, 10/100 / 1000Base-T, support POE
Fiber interface1 SFP + fiber interface
Serial port1 × RS-485, 1 × RS-232
Infrared1 × IR IN, 1 × IR OUT
I / O ports2 × I / O port
Relay ports2 × RELAY OUT
Indicator lightsRunning indicator, infrared signal input, infrared signal output indicator, power indicator
Power supplyDC12V / POE
Maximum power consumption7W
Ambient temperature-10 ℃ ~ + 45 ℃ (working state), -10 ℃ ~ + 70 ℃ (non-working state)
Ambient humidity5% ~ 90% (working condition), no condensation
Dimensions484mm × 258.5mm × 43.4mm
