• 48KHZ sampling rate, clear and bright sound, better than sound quality, built-in DSP audio processor and no low frequency “pop” noise.
  • Support functions of speech timekeepingandspeech countdown.
  • The delegate unit can apply for speaking with approval of the chairman.
  • Support internal feedback suppression function.
  • Support voice control function, and adjustable voice control sensitivity.
  • Support 5-bandEQ adjustment function, adjust sound effects according to the characteristics of different speakers to achieve the perfect effect.
  • The chairman has the priority function to turn off all delegate units that are speaking.

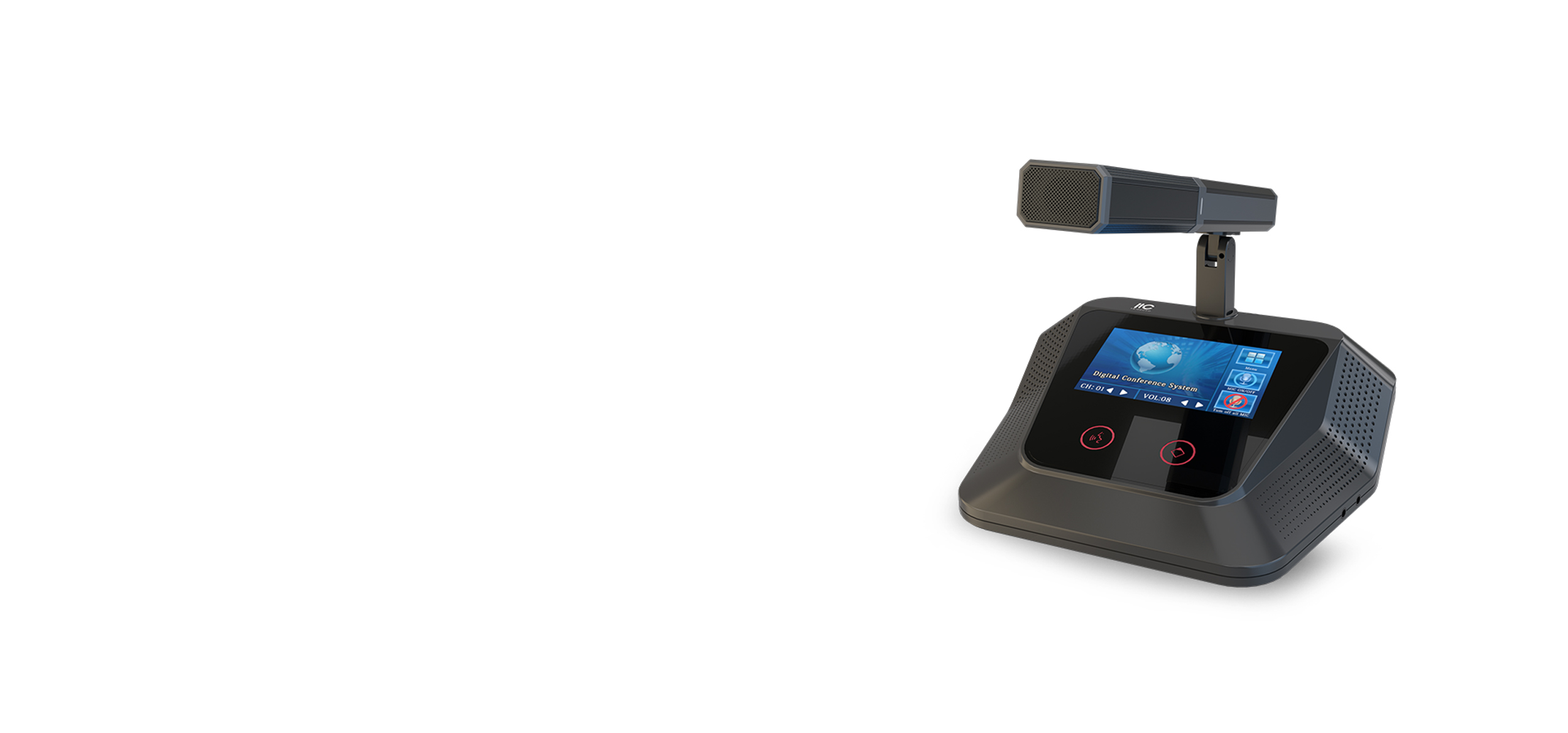

  • Designed with a 3-inch TFT color touch screen, simple and user-friendly operation.
  • 100M network transmission, hand-in-hand cascade, long-distance transmission with good sound quality.
  • Equipped with a 3.5mm outlet, for recording and connecting the headphones.
  • Equipped with a 3.5mm inlet, for connecting the headphones.
  • Support voting and rating function; the chairman unit can initiate voting and sign-in; data statistics can be fulfilled without a PC.
  • Support ID editing function,andsupport multiple language receiving channels: 15 + 1(default), 31 + 1 and 63 + 1(optional).
  • Support conferenceservice function, participants can directly send their demands to the background.
  • Sign-inand voting functions will be realized through touch button instead of physical button.
  • Support real-time display of sign-inand voting process, and synchronousdisplay in the background.

Product Detail

Microphone typeCardioid directional electret
Frequency response80Hz~16KHz
Input impedance1KΩ
Sensitivity-34dB±2dB(0dB=1V/Pa  at  1kHz)
Maximum SPL125dB(THD>3%)
Dynamic range>80dB
Maximum power consumption5W
Headphone load>16Ω
Headphone volume40mW maximum
Headphone jack3.5mm mono jack
ConnectorWith 1.8m 6-pin aviation connector
Power supplyController power supply DC36V
Voting5-key voting, 3-key voting
Simultaneous interpretation16(default), 32, 64 channels
Touch button sign-in
Screen4.3-inch capacitive color screen
Microphone pole220mm
