Feature:

  • 48KHZ sampling rate, clear and bright sound, better than the CD sound quality, built-in DSP audio processor and no low frequency “pop’ noise.
  • Built-in HIFIspeaker, supports volume adjustment and squealing suppression; when microphone is turned on, the built-in speaker will be automatically turned off.
  • Equipped witha5 mmoutlet, for recording or connecting headphones.
  • Invoice control mode, the chairman unit and the delegate unit can be turned on by voice control and voice control sensitivity is adjustable. When the delegate unit is turned on, it will be automatically turned off when no one speaking lasts for 30 seconds, while the chairman is not restricted.
  • Support 5-bandEQ adjustment function, adjust sound effects according to the characteristics of different speakers to achieve the perfect effect.
  • The chairman has the priority functionto turn off all delegate units that are speaking.
  • 100M network transmission, hand-in-hand cascade, long-distance transmission with good sound quality.
  • The capacitive touch buttonscan effectively prevent the knocking noise, creating a good conference environment.

Product Detail

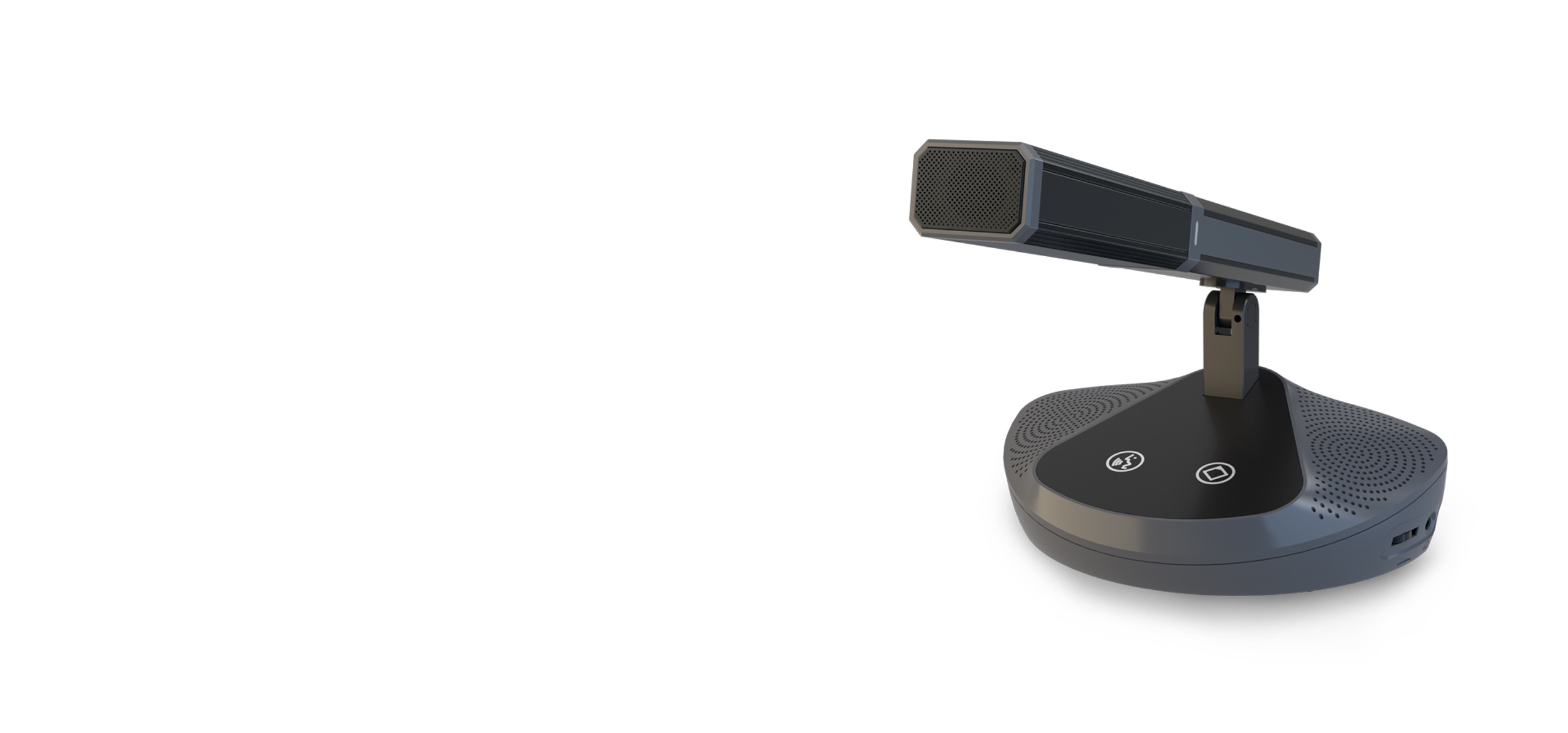

ModelTS-0202D
Microphone typeCardioid directional electret
Frequency response80Hz-16KHz
Input impedance≥1KΩ
Sensitivity-34±2dB (0dB=1V/Pa at 1kHz)
Maximum SPL125dB (THD>3%)
SNR>80dB(A)
THD<0.1%
Power consumption3W
Headphone load16-32Ω
Maximum headphone volume40mW
Headphone jack3.5mm
StandardIEC60914
ConnectorWith 1.8m 6-pin aviation connector
Power supplyController power supply
ColorBlack
Sign inTouch button sign in
InstallationDesktop
Weight0.86Kg
Microphone pole220mm
Size144×128×62mm
