Description:

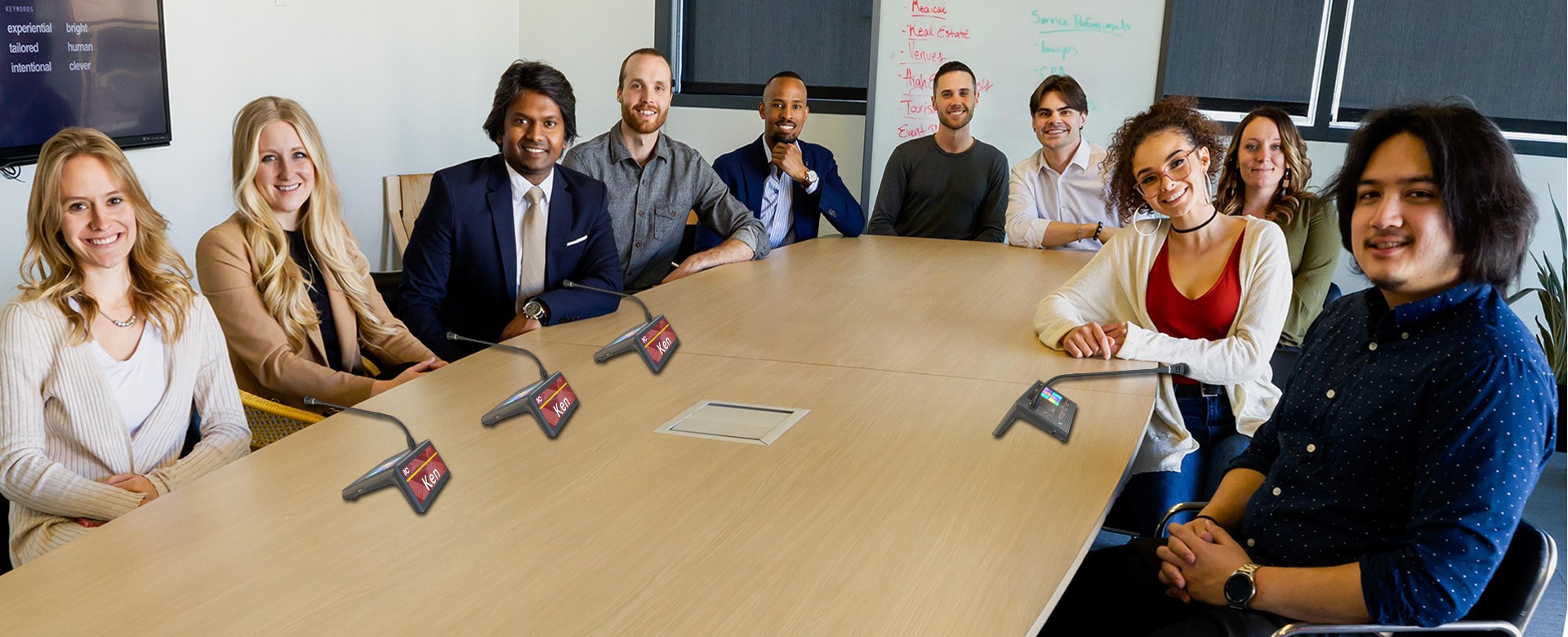

This digital conference microphone has a 7-inch color capacitive touch screen and an 8.8-inch electronic nameplate. It has many functions, such as conference speech, sign-in, voting, simultaneous interpretation, electronic nameplate, camera tracking, conference service, etc. It is suitable for round table conference rooms, square table conference rooms, multi-function halls, banquet halls, multipurpose halls and other places.

Feature:

  • Quad-core ARM A7processor, Android system, a 7-inch color capacitive touch screen, top user-friendly experience.
  • Electronic nameplate function: it has an 8.8-inch full-color and full-view electronic nameplate that can display participant information clearly and support customized nameplate layout, color and font.
  • Support modifying participant information on the local device, and support one click sending participant information through the PC software.
  • The system has strong compatibility, which supports working with both wired digital conference units and wireless digital conference units, and supports unified PC software management.
  • Support viewing conference information. The conference information is uniformly sent by the PC software and can be previewed on the main page of the microphone.
  • Support conference service function, including pen, paper, tea and personal service demands.
  • Support SMS communication with 7-inch capacitive touch color screen and microphone unit in the same conference, support sending messages to one or more people.
  • The software supports languages including simplified Chinese, traditional Chinese, and English.

Product Detail

ModelTS-0210
Microphone typeCardioid directional electret
Frequency response80Hz~16KHz
Input impedance1KΩ
Sensitivity-34±2dB (0dB=1V/Pa,at 1KHz)
Maximum SPL100dB(THD>3%)
SNR>80dB(A)
Crosstalk>70dB
Dynamic range>80dB
THD<0.1%
Maximum power consumption7 W
Headphone load>16Ω
Headphone volume40mW maximum
Headphone jack3.5mm dual channel jack, can be used for recording and connecting headphones
StandardIEC60914
Power supplyController power supply
ConnectorWith a 1.8-meter 6-pin aviation line
ColorBlue
VotingSupport
Sign-inSupport
Screen7-inch capacitive multi-point touch screen
Electronic nameplate8.8-inch full-color and full-view screen
Microphone pole409mm
Size255x156x108 mm
InstallationDesktop
WeightAbout 1.26Kg
