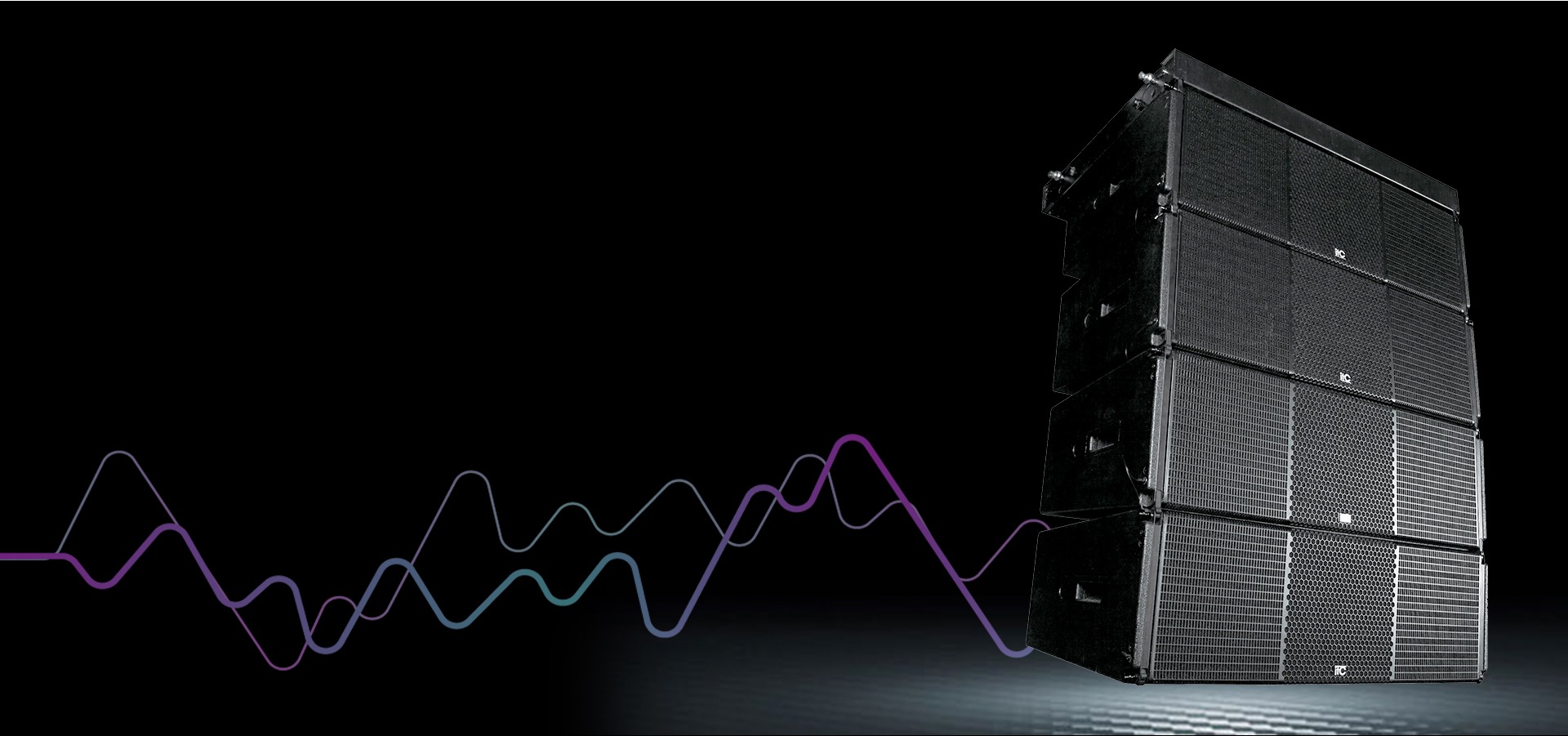

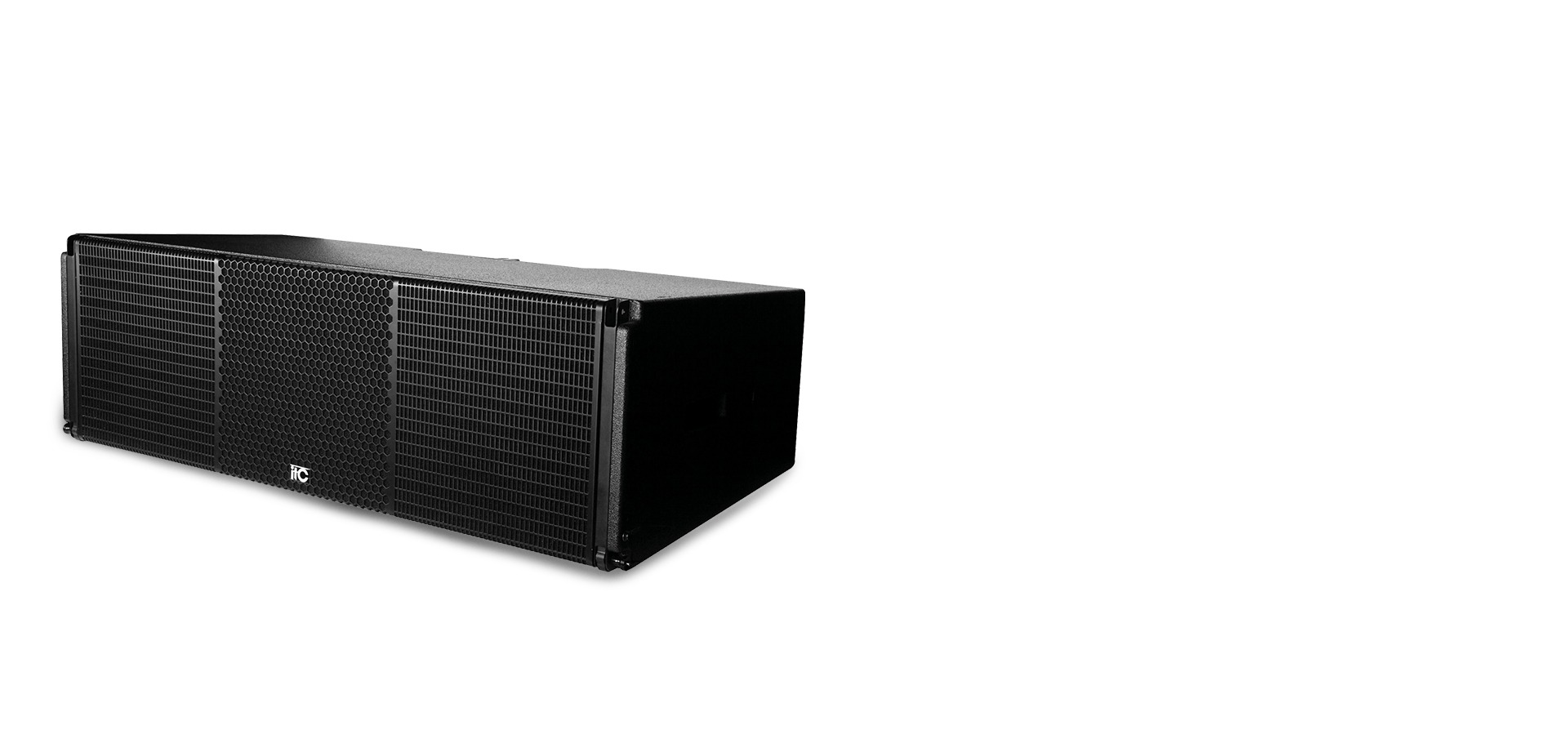

The linear array speaker has a wide range of applications. It can be used with a professional amplifier and audio processor. It is suitable for large outdoor performances, large theaters, stadiums, etc.


  • Imported birch housing, small in size and light in weight, wear-resistant paint treatment.
  • Using two quality 12″ woofer units, a 10″ alto unit, and two 3″ tweeter drivers, the sound is full of sensitivity and penetration.
  • Frequency divider in precise design can optimize the power response and the vocal MF performance.
  • The combination of hoisting installation and linear array design, allows0-10 degrees of the adjustable coverage area of the speaker, and has the advantages of compact combination, lightweight, and convenient engineering assembly.
  • Professional hanger combination, simple hanging method, convenient assembly.

Product Detail

Type3-frequency linear array speaker
Rated powerLF: 800W+MHF: 600W
Peak powerLF: 3200W+MHF: 2400W
Nominal impedance8Ω+8Ω
Frequency range45Hz-20KHz
SensitivityLF: 103dB + MHF: 108dB
Maximum SPL(rated/peak)LF: 132dB/138dB+MHF: 135dB/141dB
Woofer12″ woofer×2
Mid-tweeter10″ alto×1+3″ compressed driver×2
Horizontal coverage angle (-6dB)110°
Vertical coverage angle (-6dB)Depending on linear array size and tilt angle
Size(H×D×W)(360+290)×1105×570 mm
