Feature:

  • Industrial modeling aluminum panel, durable design, removable and washable dust-proof mesh and cooling vents.
  • Soft starters can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.

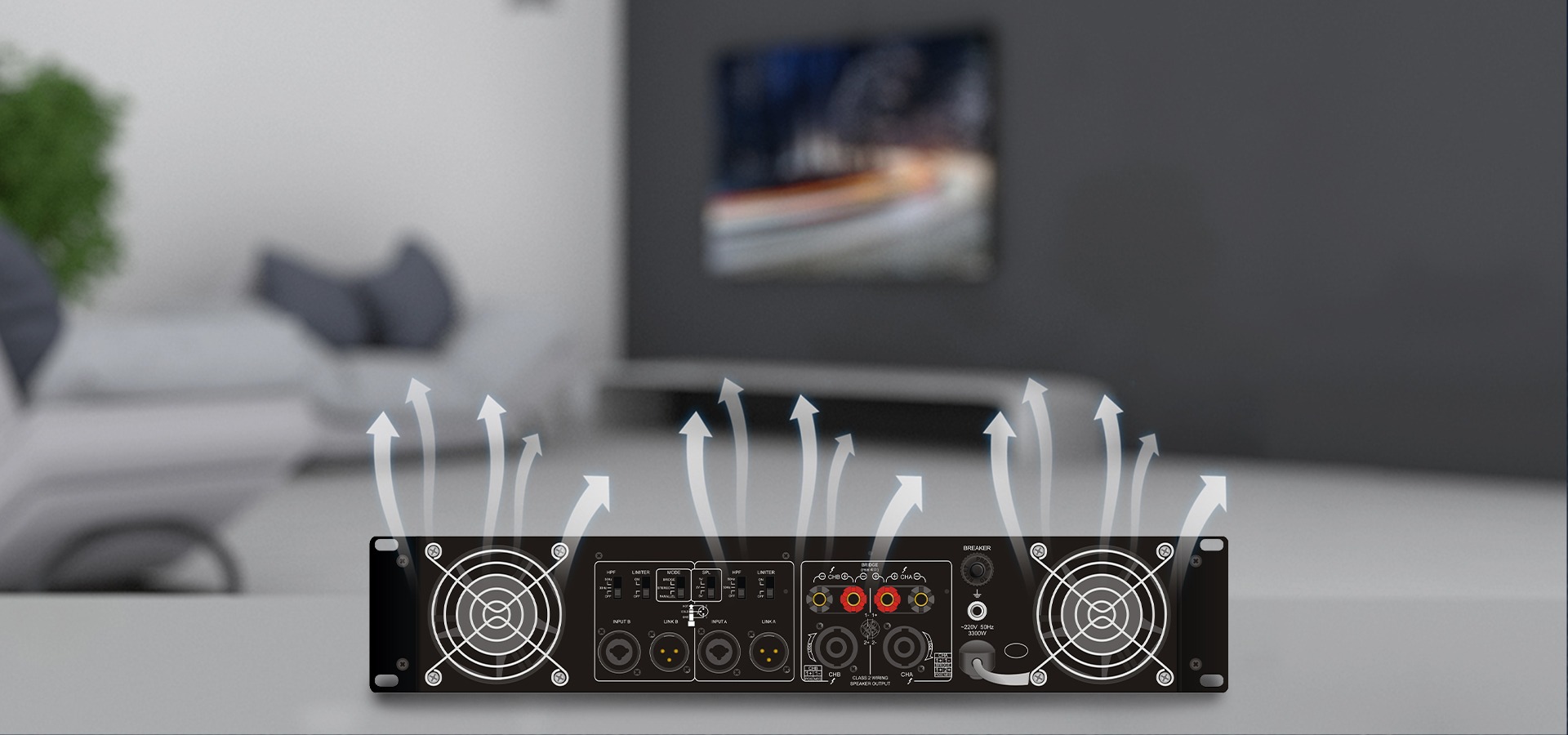

  • Intelligent forced heat dissipation design, low fan noise, high dissipation efficiency, etc.
  • Built-in intelligent limiter controls the power module and the speaker system to work in a safe range.
  • Built-in 30Hz/50Hz high-pass filter.
  • Multiple modes: stereo, bridge, parallel.
  • Three input sensitivity options: 1V/2V/3V * Abundant reserve power, with 2R low-impedance output, high-fidelity and perfect sound quality.
  • High-quality transformer, low resistance and large capacity electrolytic filter make large dynamic work smooth.
  • Class-H efficient amplified circuit, comprehensive and reliable security protection measures and working status indicator (short circuit, overload, DC and overheat protection, transformer overheat protection).

Product Detail

Model TA-2700
Output power (20-20KHz/THD≤1%) stereo/parallel 8Ω × 2 700W × 2
Output power (20-20KHz/THD≤1%) stereo/parallel 4Ω × 2 1050W × 2
Output power (20-20KHz/THD≤1%) stereo/parallel 2Ω ×2 1500W × 2
Bridge 8Ω 2100W
Bridge 4Ω 3000W
Connection XLR, TRS interface
Voltage gain (@1KHz) 37.7dB
Input sensitivity 0dBu(1V)
Input impedance 10KΩ unbalanced, 20KΩ balanced
Frequency response (@1W Power) 20-20KHz/±1dB
THD+N(@1/8 power) ≤0.05%
SNR(A-weighted) ≥100dB
Damping coefficient(@ 1KHz) ≥300@ 8ohms
Resolution (@1KHz) ≥80dB
Protection method Over-current protection, DC protection, short circuit protection
Indicator Power, protection, distortion
Cooling method Fan cooling
Power supply ~ 220V 50Hz
Maximum power consumption 4500W
Size 483× 494× 88mm
Weight 19.6Kg
