Description:

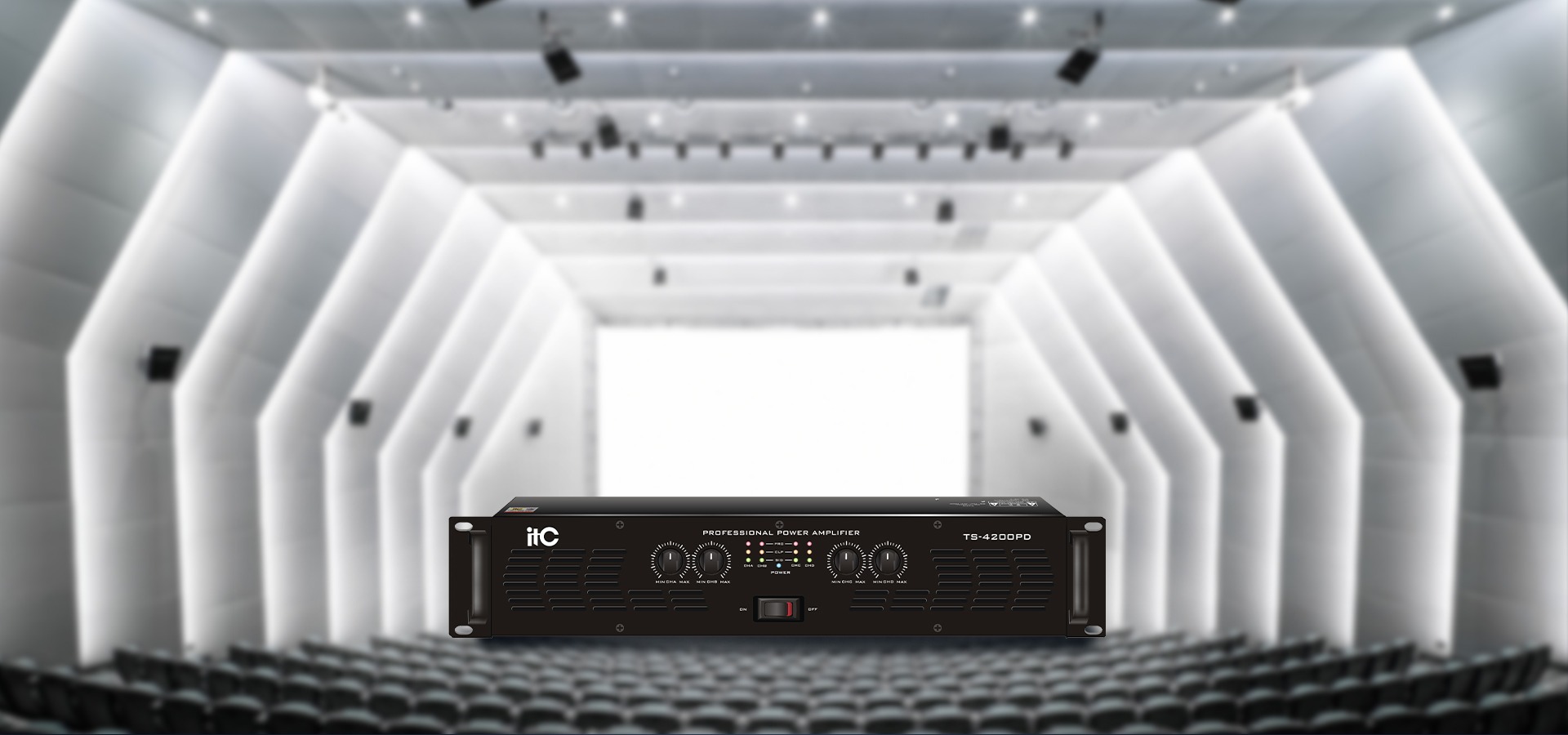

It is suitable for medium and large theaters, outdoor performances, stadiums, nightclubs, entertainment venues, bars, banquet halls, concert halls and so on.
Feature:
- The latest class-Damplifier design has low distortion and high efficiency.
- Switched power supply, with high efficiency; soft starter can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.
- Effectively suppress power harmonics, and meet the EU green power standard.
- Intelligent peak clipper controls the power module and speaker system to work within a safe range.
- Standard XLR + TRS1/4″ composite input interface, simple interface design is more convenient for different use
- The amplifier has three options of input sensitivity, which can easily accept a wide range of signal source input.
- Suitable for different places, stereo mode or bridge mode is optional.
- Grounded input pin and suspension control switch can effectively suppress noise.
- With overvoltage protection, under-voltage protection, over-temperature voltage limit, over-temperature shutdown, over current voltage limit, over current shutdown, DC protection, output short circuit protection, temperature control fan, amplifier frequency synchronization, PWM frequency synchronization, etc.
- Built-in recoverable unique cut-off switch.
- The dust-proof mesh of the panel is removable and washable.


Product Detail
Model | TS-4200PD |
Output power (20-20KHz/THD≤1%)
stereo/parallel 8Ω×4 |
120W×4 |
Output power (20-20KHz/THD≤1%)
stereo/parallel 4Ω×4 |
200W×4 |
Bridge 8ΩX2 | 400W×2 |
Connection | XLR, TRS interface |
Voltage gain (@1KHz) | 34.4dB |
Input sensitivity | 0.775V/1V/1.44V |
Input impedance | 10KΩ unbalanced, 20KΩ balanced |
Frequency response (@ 1W Power) | 20-20KHz/+0/-2dB |
THD+N (@1/8 power) | ≤0.05% |
SNR (A-weighted) | ≥95dB |
Damping coefficient (@ 1KHz) | ≥200@ 8Ω |
Resolution (@1KHz) | ≥80dB |
Protection method | Over current protection, DC protection, short circuit protection |
Indicator | Power, protection, distortion |

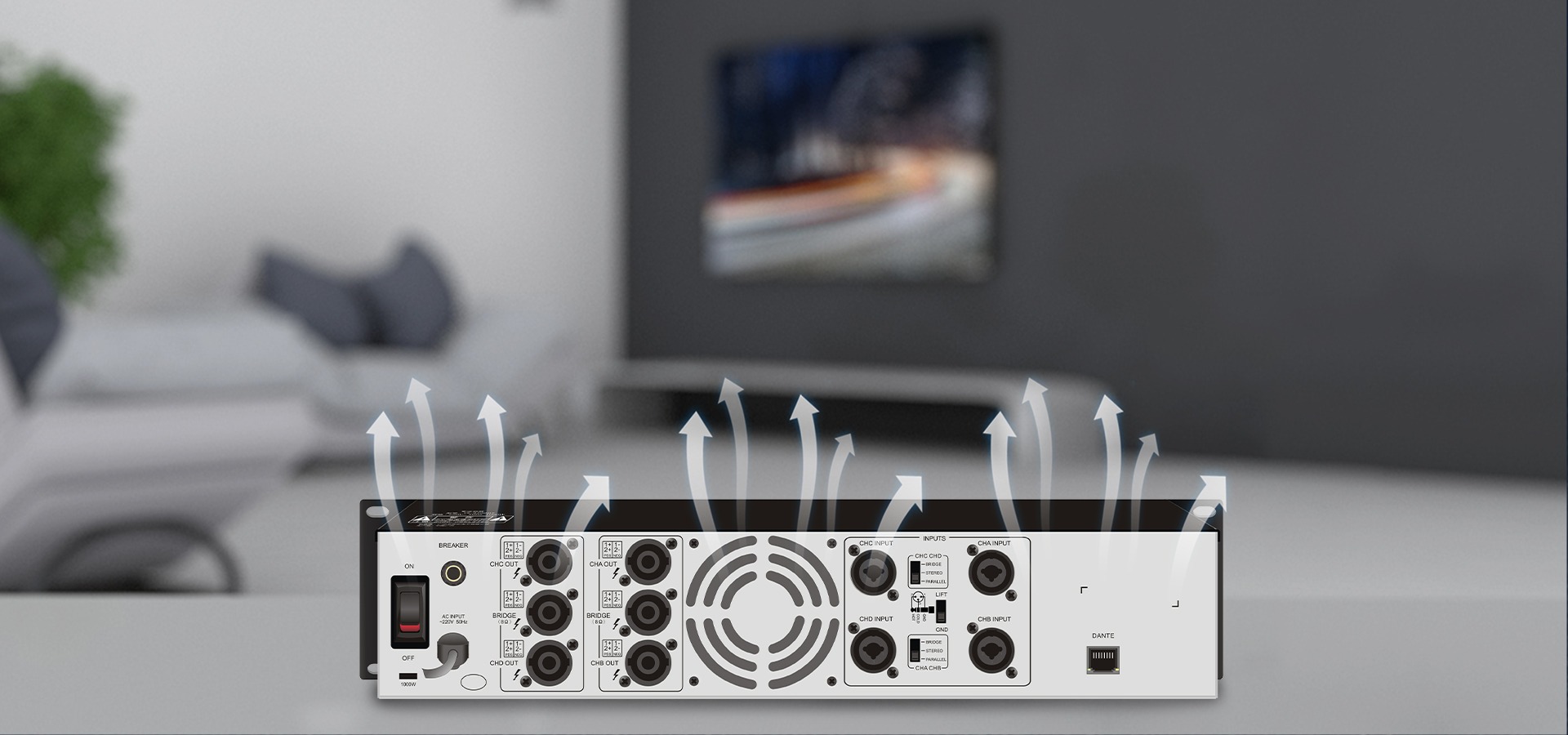

Cooling method | Fan cooling |
Power supply | ~220V 50Hz |
Maximum power consumption | 1000W |
Size | 483×350×88mm |
Weight | 8.5Kg |
