Description

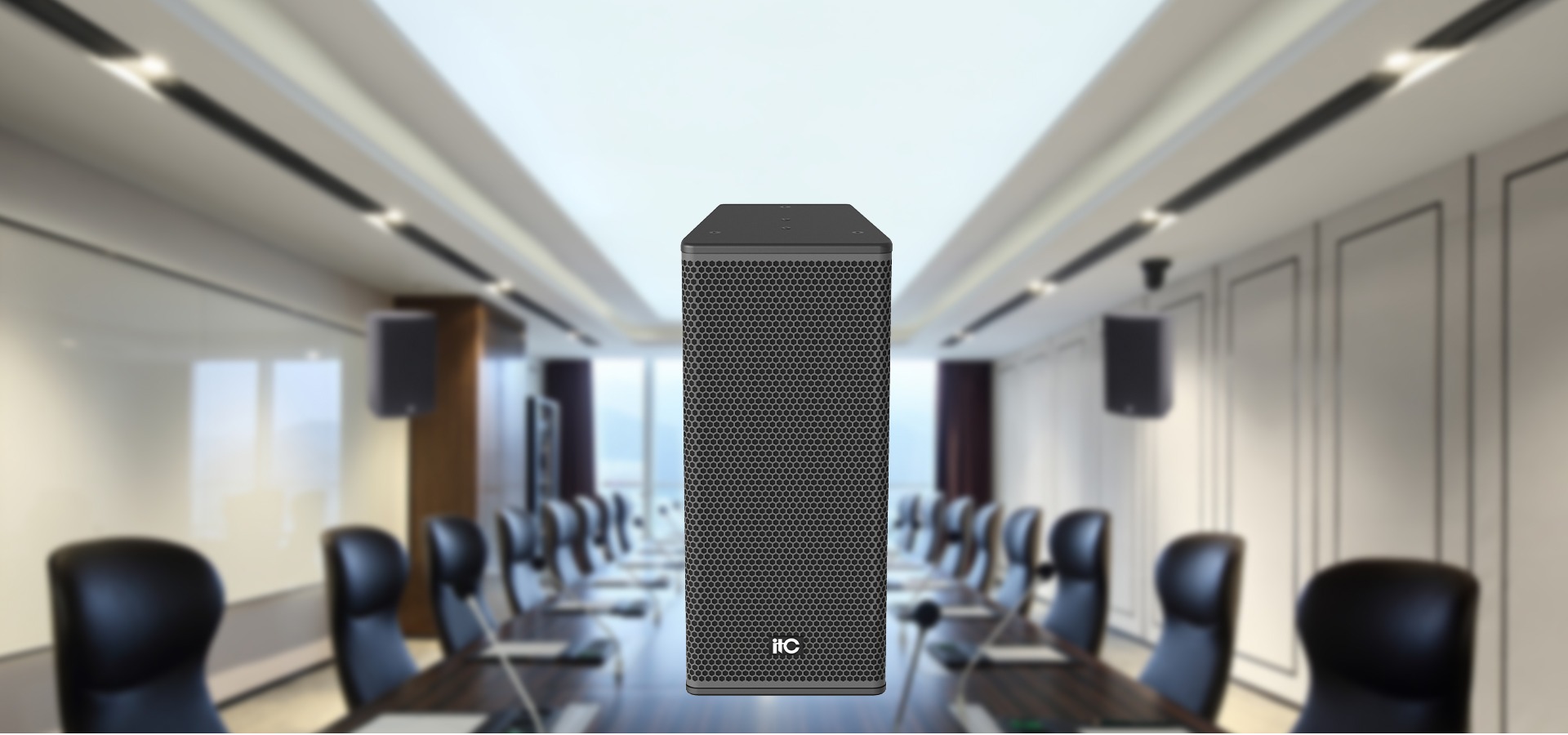

It can be used as supplementary speakers in various theaters, multipurpose halls, and banquet halls, and can also be used as main speakers on various high-end occasions.

Broadband pointing control, the best partner for line fill

  • Dual 10-inch three-way single-drive design, rated power 600w
  • Controllable 800Hz-16kHz horizontal and vertical orientation
  • Adopt the same coaxial mid-high unit as the KS-210 line array
  • Maximum sound pressure level 135dB
  • 55-20KHz

Feature

  • Adopt two 10-inch neodymium magnet woofers and oneItalianimported 100mm+65mm neodymium magnet coaxial compression driven mid-tweeter.
  • The cabinet is made of high-quality Russian imported birch wood, adopts precise CNC machining, polyurea spray paint, high-end and wear-resistant.
  • Supportdirectional control with a wider frequency band; the 800-16KHzhorizontal and vertical directions are controlled by the point sound source horn.
  • Axisymmetric structure, three-frequency single drive design.
  • Professional speaker sockets and plugs with good electrical characteristics.

Product Detail

Model KS-10H
Rated power 600W
Peak power 2400W
Nominal impedance
Frequency range 55Hz -20KHz
Sensitivity 103dB(1M/1W)
Maximum SPL (rated/peak) 131dB/137dB
Woofer 10″ woofer × 2
Tweeter 100mm+65mm coaxial mid-tweeter × 1
Coverage angle (-6dB) 90°(H) 60°(V)
Net weight 25.5kg
Dimension (H×W×D) 680×300×390mm
