Description
The interactive intelligent flat panel integrates functional modules such as presentation, writing, interaction and sharing to easily create a simple paperless conference/teaching scene and realize an efficient and harmonious conference/teaching method.
Feature
- A 65/75/86/98 inch DLED LCD screen with 4K UHDdisplay and narrow frame design, and a front USB port that supports switching the channels to realize USB multimedia file playback.
- Built-in Android operating system, support optional ultra-thin plug-in PC module.
- Support20-point touch on the PC terminal and 16-point touch on the Android terminal; fast touch response speed, high writing and presentation fluency.
- Support the touch control of the signal source, volume and other menu operations in the display state of each signal source.
- Support anti-light interference: it can be used as usual under direct sunlight.
- Support the intelligent wake-up function of HDMI signal input in a standby state; support HDMI 4K 60Hz.
- Support touch menu functions, including return button, menu operation, task preview, channel switching, volume adjustment, shortcut whiteboard, etc.

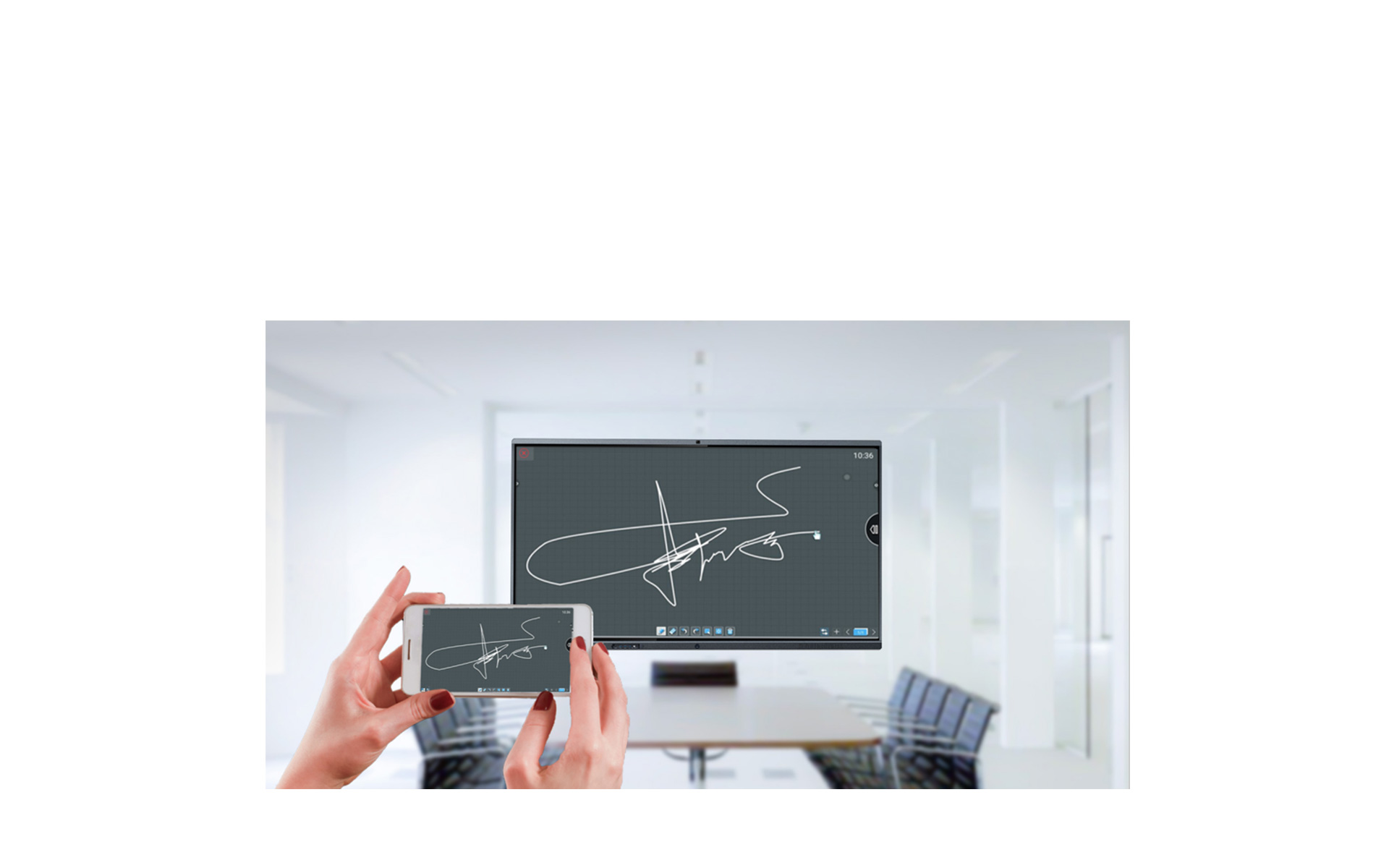

- Support the handwritten annotation function of any channel.
- Support wireless WiFidual frequency 2.4G/5G; support one-key black screen function.
- Support wired network connection(Android, PC).
Product Detail
| Model | TV-65820 | TV-75820 | TV-86820 | TV-98820 |
| Processor | Mali-G52 MP2 dual-core, Quad-Core A55 quad-core | Quad-Core A55 quad-core, Mali-G52 MP2 dual-core | Quad-Core A55 quad-core, Mali-G52 MP2 dual-core | Quad-Core A55 quad-core, Mali-G52 MP2 dual-core |
| System version | Android 11 | |||
| RAM | 4GB | |||
| Storage | 32GB | |||
| Screen type | LED LCD screen | |||
| Screen size | 65 inches (16:9) | 75 inches (16:9) | 86 inches (16:9) | 98 inches (16:9) |
| Screen display size | 1428.48（H）×803.52（V）mm | 1650.24mm(H) x 928.26mm(V） | 1895.04（H）×1065.96（V）mm | 2159（H）×1214（V）mm |
| Physical resolution | 3840（H）*2160（V） | |||
| Pixel pitch | 0.124(H)x 0.372(V)mm | 0.14325(H)x 0.42975(V)mm | 0.1645(H) ╳ 0.4935(V)mm | 0.5622×0.5622mm |
| Color gamut NTSC (Typ) | 72% | |||
| Response time | Typ：6.5ms Max：12ms | Typ：8.5ms Max：12ms | Typ：8ms Max：12ms | 8ms |
| Refresh rate | 60Hz | |||
| Chromaticity | 1.07B (8-bit + Hi-FRC) | 1.07G（8bit+FRC） | 1.07G（8bit+FRC） | 1.07B (10bit) |
| Brightness | 200-300cd/㎡ | 350cd/㎡ | 350cd/㎡ | 450 cd/㎡ |
| Contrast | 4000：1 | 5000：1 | 4000：1 | 1200:1 |
| Viewing angle | 178°(H/V) | |||
| Backlight lifespan | ≥50000h | ≥50000h | ≥50000h | ≥30000 |
| Audio channel | 2.0 | |||
| Speaker | 2×15W@ 8Ω | |||
| Camera pixel | 48 million-8000×6000@5fps | |||
| Number of camera | 1 | |||
| Camera field angle | D：80°H：75° V：50° | |||
| Microphone pickup distance | ≥8m | |||
| Number of microphone | 8 | |||
| Input port | TYPE-C*2；HDMI*1；TUOCH*1；USB3.0*2；HDMI2 IN*1；HDMI1 IN*1；RJ45 IN*1；AUDIOIN*1；VGAIN*1；DPIN*1； | |||
| Output port | OPTICAL OUT*1；USB2.0*1；TOUCH*1；USB3.0*2；WIFI*4；HDMI OUT*1；RJ45 OUT*1；LINE OUT*1 | |||
| Communication port | RS232*1 | |||
| Touch embedding method | Built-in integrated, non-external design | |||
| Touch sensing technology | Infrared recognition touch technology: PC: 20 points / Android: 16 points (5-point writing) | Infrared induction recognition touch technology: PC: 20 points / Android: 10 points | ||
| Writing method | Fingers, stylus or non-transparent objects larger than 5mm in diameter (multi-touch 8mm) | |||
| Writing height | 2.5mm | 3.5mm | ||
| Screen surface hardness | 7H | |||
| Output coordinate | 32767(W)*32767(D) | 32767(W)*32767(D) | 32767(W)×32767(D) | 32767(W)×32767(D) |
| WiFi | 802.11a/b/g/n/ac/ax+Bluetooth5.0, working frequency: 2.4GHz/5GHz, working distance: 12m | |||
| Power supply | 100-240V~50/60Hz input | |||
| Standard power consumption | 180W | 320W | ≤370W | ≤400w |
| Standby power consumption | ≤0.5W | |||
| Working temperature | 0℃～40℃ | |||
| Working humidity | ≤80%RH | |||
| Overall size (L×W×T) | 1493mm*87.92mm*923.8MM | 1714.80mm*87.75mm*1048.3mm | 1961.20mm*87.37mm*1187.7mm | 2224.9mm*99.9mm*1330.9mm |
| Package size (L×T×H) | 1597*198*1025mm | 1812mm*230mm*1150mm | 2060mm*240mm*1290mm | 2410mm*320mm*1510mm |
| Weight | Net weight: 41.5±1kg Gross weight: 51.5±1kg | Net weight: 53±1kg Gross weight: 67.3±2kg | Net weight: 69.7±1kg Gross weight: 86.5±2kg | Net weight: 98±1kg, Gross weight:143±5kg |
