Feature

  • Support digital-analog dual backup function, a digital transmission link, and an analog backup link.
  • Dual cartridge(14MM pure gold diaphragm cartridge*2) design, and with digital and analog switch dual indicator lights.
  • POE switch power supply, uncompressed audio transmission technology, 48K sampling rate, 80Hz-16KHz bandwidth, perfect sound quality.
  • Phantom power supply, 80Hz-16KHz bandwidth, perfect sound quality.
  • Capacitive touch buttons can ensure no button-knocking noise and a good venue environment.
  • The microphone unit uses 100M network transmission and connects to the server through a POE switch. Long-distance transmission will not have any impact on the sound quality.
  • Support microphone control and voice control function-through PC software.
  • The chairman unit has the priority right to turn off the speaking delegate
  • Support TCP/IP protocol cluster, support multiple protocols such as ICMP, HTTP, UDP, TCP, and IGMP.
  • Support the PING package function.
  • Each microphone unit has an independent web control page. Support four language switching, adjustment of microphone ID number, microphone sensitivity, microphone EQ and other parameters.
  • Support feedback suppression function, voice control function, and adjustable voice control sensitivity.
  • Support 5-bandEQ adjustment function, adjust sound effects according to the voice characteristics of different speakers to achieve the perfect effect.
  • Support sign-in function. You can also disable and control the unit sign-in, and other functions through the PC software.
  • Support firmware upgrade function on the web page.
  • Support the IP address sniffing function; the ID number, IP address and MAC address of unknown units can be found by PC software.

Product Detail

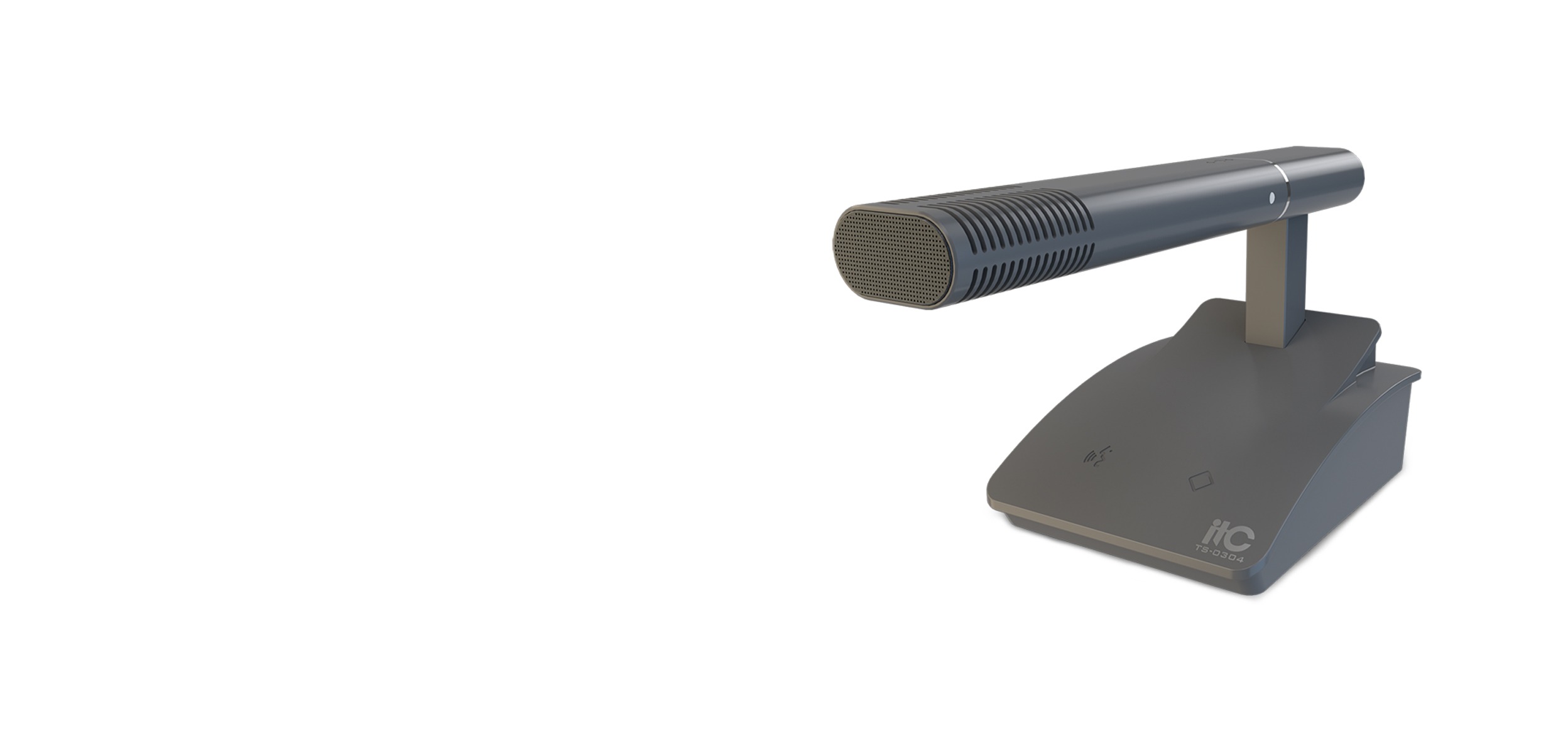

Model TS-0304/TS-0304A
Microphone type 14mm gold-plated capacitive dual cartridge
Microphone directivity Cardioid pattern
Frequency response 80Hz~16KHz
Microphone input impedance 1KΩ
Sensitivity -33±1.5dB (0dB=1V/Pa,at 1KHz)
Maximum SPL 120dB(THD>3%)
SNR >80dB(A)
Crosstalk >70dB
Dynamic range >80dB
THD <0.1%
Maximum power consumption 2.5W
Power supply POE power supply / phantom power 48V
Color Gray
Sign-in function Key sign in
Dimension 220×134×105mm (L×W×H) (without microphone pole length)
Installation method Desktop
Weight 0.92kg
