Description:

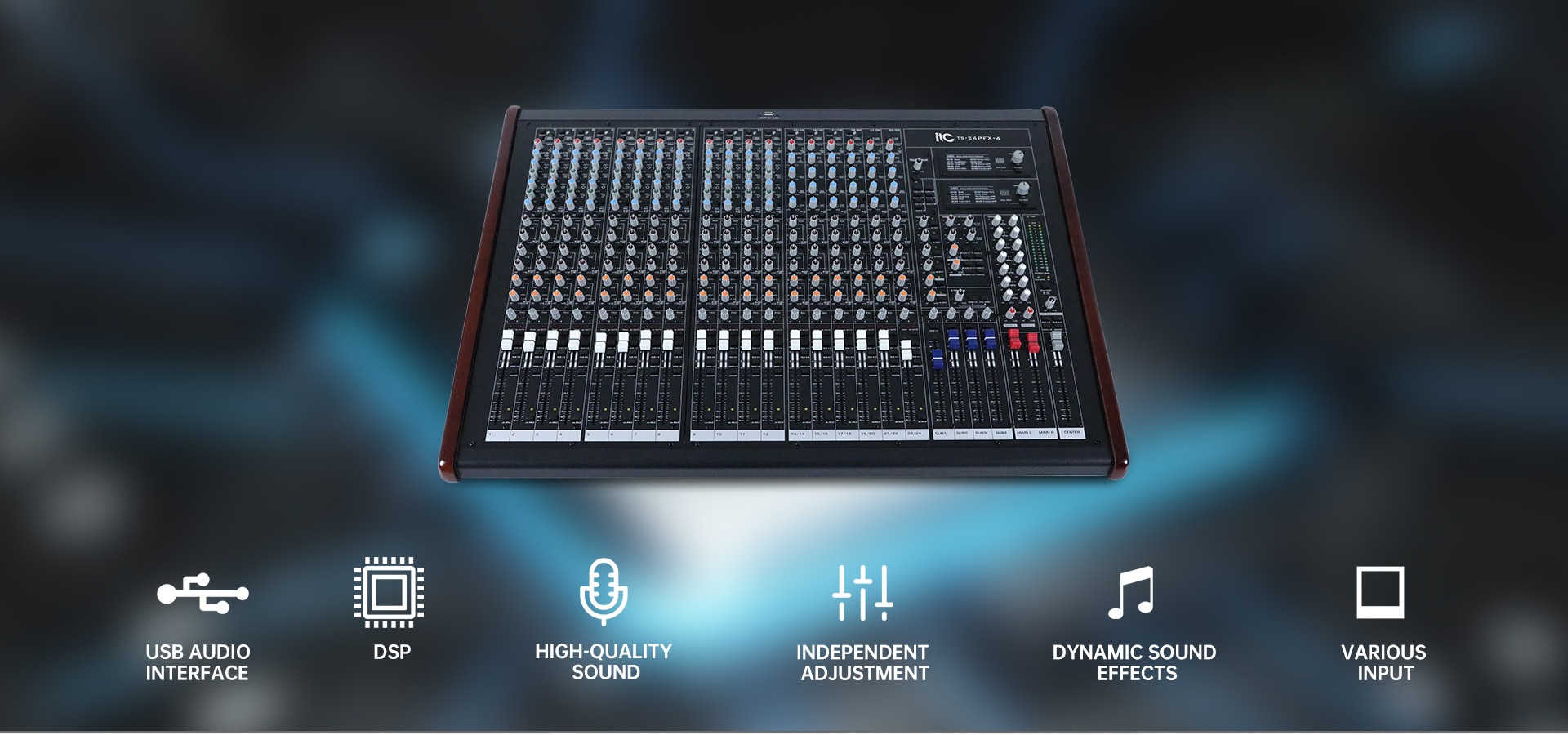

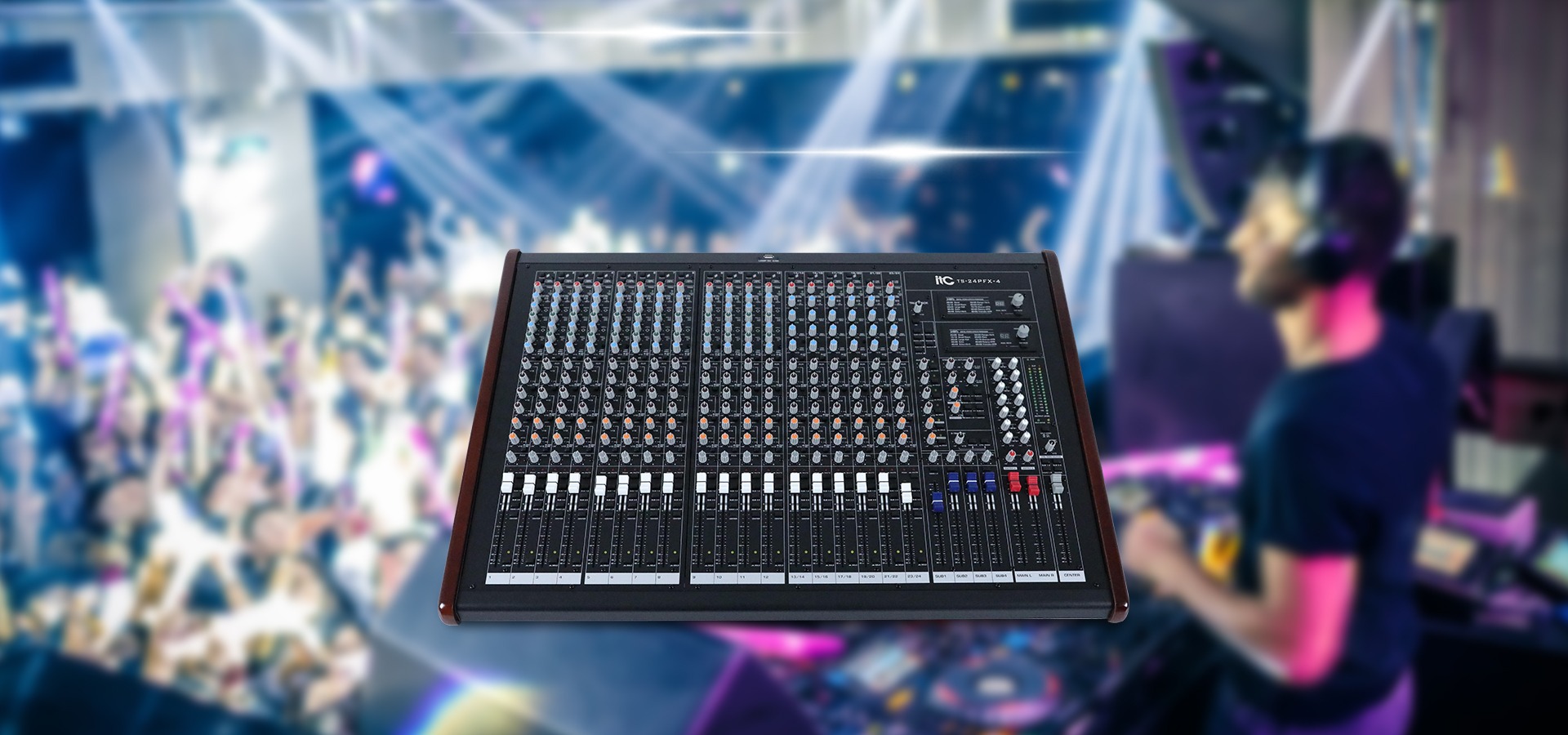

The large professional mixer has 18 channels of mono, and 6 channels of stereo, with dual audio processor and 4 marshaling outputs. It is suitable for various performance venues, conference rooms, schools, intelligent buildings, industrial and mining enterprises as well as for personal use.
Feature:
- 18 gold-plated XLR microphone inputs and balanced line inputs.
- 6 stereo TRS balanced input interfaces.
- Ultra-low noise preamplifier and +48V phantom power.
- Extremely high space provides a wider dynamic range.
- All input channels are equipped with mute, SOLO function, the overload LED & low cut filter
- MIC channel with low cut filter and stage.
- Each channel has 6AUX transmission, with AUX1-2/AUX3-4/AUX5-6 andPRE/POS switchable faders.
- Microphone channel IF supports 3-band EQ adjust
- Stereo channel has 4-band EQ.
- WithSUB1-2, SUB3-4, MAINL-R and center signal distribution switch.
- 100mm high precision fader.
- Each channel is equipped with a plug-in interface and a direct output interface, the main plug-in interface for flexible connection to external devices.
- (SUB1-SUB2)(SUB3-SUB4)|(L-R) (center) A&B matrix.
- Control room mobile devices.
- 2-TRACK IN can be distributed to the main microphone, control room/headphone output.
- Fully assignable intercom system.
- With USB port, support recordingSUB1-2 or main output, and transmitting to CH23-24 system bus for playback.
- 100optionsof DSP effects.



Product Detail
Model | TS-24PFX-4 |
Input | |
Input impedance | Mic 2kohm balanced Line 10kohm balanced |
Input gain | Mic continuous variable: 0dB to +50dB Line-mono continuous variable: -15dB to +35dB Line-stereo continuous variable: -20dB to +20bB |
Maximum input level | Mic +22dBu
Line – (mono) + 22dBu Line – (stereo) + 22dBu |
Interface transmission impedance | 120ohm unbalanced |
Interface transmission level / maximum | -10dBu/+22dBu |
Loop impedance | 10kohm unbalanced |
Interface loop level / maximum | -10dBu/+22dBu |
CMR at 1 kHz Line (20Hz-20kHz) | >60dB |
Frequency response | Mixing to mixing 20Hz-20kHz +/-3dB |
SNR (20Hz-20kHz) | Mic EIN ref.150ohms-117dBu |
System noise (20Hz-20kHz) | |
Summing noise | -90dBu (24-channel routing pull low to fader) |
Wired mixing noise | -86dBu (24 channel routing to 0dB, pan center) |
Distortion at 1kHz | Mixing to device interface (+30dB overall gain, +20dBu output) <0.009% Mixing to device interface (+30dB overall gain, +20dBu output) wavelength 0.03% |
Crosstalk at 1 kHz | Channel to channel >-80dB Mixing to mixing >-80dB Channel to mixing >-80dB |
Fader attenuation | >100dB |
Output (rated signal level mic-50dBu to 0dBu-Line 0dBu) | |
Output channel | 14 outputs (4 groups, 6.5 single-plug interface output; 6 auxiliary, 6.5 single-plug interface output; 1 stereo monitor, 6.5 single-plug interface output; 1 stereo RCA output port; 1 stereo main output XLR/6.5 single plug interface; 1 channel center audio output/ 6.5 single plug interface.) |
Output impedance | All line outputs are 120ohm unbalanced |
Interface transmission impedance | 120ohm unbalanced |
Interface transmission level / maximum | +22dBu |
Interface loop impedance | 10kohm imbalanced |
Interface loop level / maximum | +22dBu |
Maximum output level at XLR main output | +28dBu |
All outputs on 1/4″ plug | +22dBu |
Headphone | +22dBu/600ohm |
Main mixing section | |
Treble slope | +/-15dB @ 12kHz |
Alto-treble signal bell (stereo) | +/-12dB @ 3kHz |
Alto-treble signal bell (single) | +/-12dB frequency range 100Hz-80kHz |
Alto-bass signal bell (stereo) | +/-12dB @ 500Hz |
Bass signal bell (stereo) | +/-15dB @ 80Hz |
High pass filter slope | -18dB/Oct. @ 75Hz |
Power supply | 100-240V-50/60Hz |
Net weight | 19.42kg |
