Description

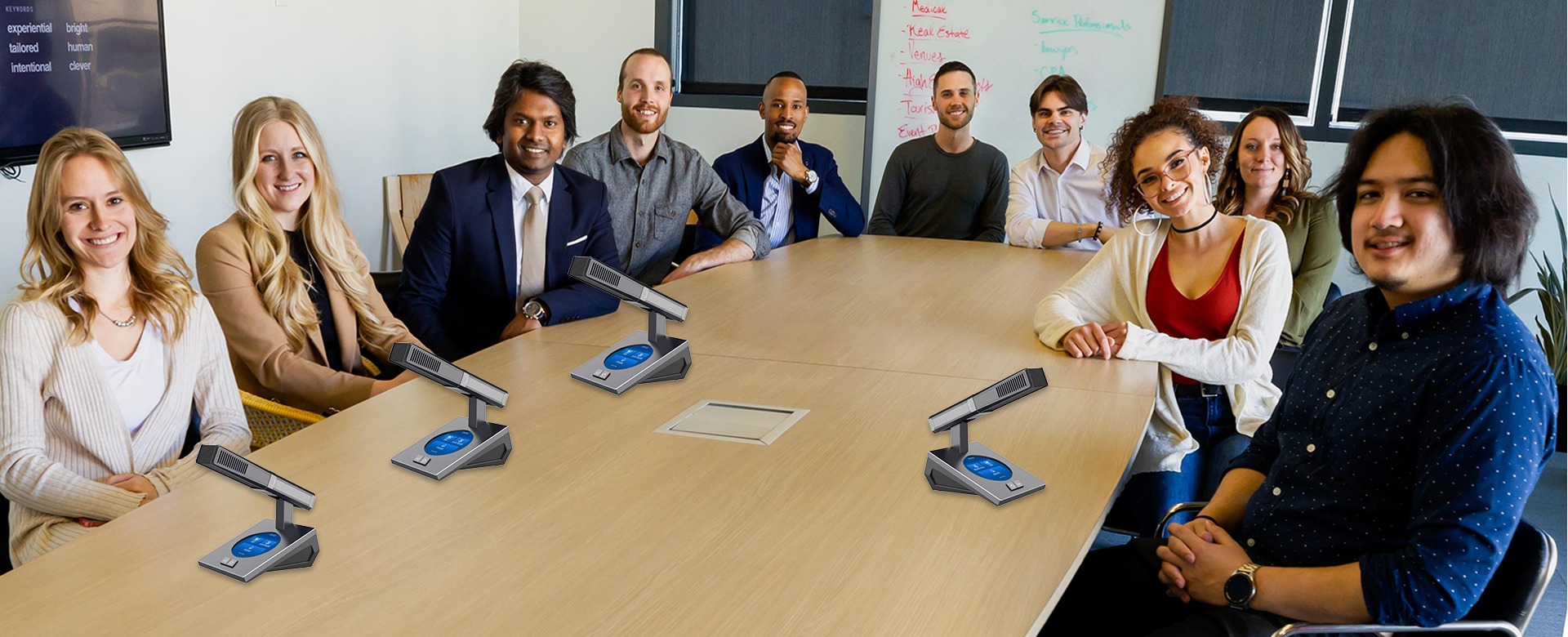

The Conference Chairman Unit adopts a 7-inch capacitive touch screen equipped with a 6.68-inch electronic nameplate, which supports meeting functions such as meeting speech, meeting sign-in, voting, simultaneous interpretation, electronic table cards, camera tracking, and meeting services, which is widely used in round table meeting rooms and square table meeting rooms, multi-function halls, banquet halls, lecture halls and other places.

Feature

  • The use of capacitive touch buttons can effectively eliminate the noise of button knocking and ensure a good venue environment.
  • Using dual-mic, dual-speaker and dual-screen design, integrating functions such as conference speech, conference sound reinforcement, electronic nameplate display, camera tracking, conference service.
  • Designed with a 7-inch capacitive touch screen and a 6.86-inch electronic nameplate; support the electronic nameplate function, which can display the information of the speaker’s name, position and company name, support free layout of the nameplate layout, and support custom arbitrary color and font display.
  • Equipped with 6 function keys, including voting keys, Mic switch, built-in speaker volume up/down keys.
  • Using uncompressed audio transmission technology, 48K sampling rate, 80Hz-16KHz bandwidth and perfect sound quality.
  • Adopt standard TCP/IP communication protocol and support ping packet function.

Product Detail

Microphone type Electret condenser microphone
Microphone directivity Cardioid
Frequency response 80Hz~16KHz
Input impedance 1KΩ
Sensitivity -40±1dB (0dB=1V/Pa,at 1KHz)
Max SPL 120dB(THD>3%)
SNR >80dB(A)
Crosstalk >70dB
Dynamic range >80dB
THD <0.3%
Max power consumption 10W
Standard IEC60914
Headphone load >16Ω
Headphone jack 3.5mm binaural headset,used for recording and headphones
Front display + touch screen 7 inch capacitive touch screen
Back screen size 6.86 inch
Speaker rated power 2*2W @ 4Ω
Power supply 48VPOE switch power supply
Color Star blue
Dimension (L×W×H) 206*221.4*123.6mm
Weight 1.2kg
Microphone pole 220mm
Installation method Desktop installation
