Feature:

  • Adopt 48KHz sampling rate, providing clear and bright sound.
  • Adopting an advanced chip structure and unique processing algorithm, the microphone is turned on in 5 seconds only.
  • With an intelligent fault detection function, it prompts the user of AP faults, controller communication faults, low signal strength, etc.
  • Support charging through the Type-C port, support smart state indicator, and 18W fast charging.
  • Support SSID setting function.
  • SupportChinese and English interface language switching, which can be set uniformly through PC software.
  • Support the functions of speech count down and speech time
  • With the approval of the chairman, the delegate unit can apply to speak.
  • With voice control function, it can turn on the microphones intelligently and can adjust the voice sensitivity and set the shutdown time of the microphone via PC
  • Support sign-in function: set and start the sigh-via PC software.
  • Supportvotingfunction: five-key voting and three-key voting, flexible and convenient.
  • Adopt128-bit AES encryption technology, support WPA/WPA2 wireless security technology, prevent eavesdropping and unauthorized access and provide higher confidentiality of the conference system.
  • Adopt wireless transmission technology, making wiring convenient and time-saving.
  • The chairman has a priority function to turn off all delegate microphones that are speaking.
  • Built-in lithium battery can support 14 hours of continuous speech.
  • Adopt a 3-inch full-view IPS capacitive touch screen.
  • The power switch is at the bottom of the microphone.

Product Detail

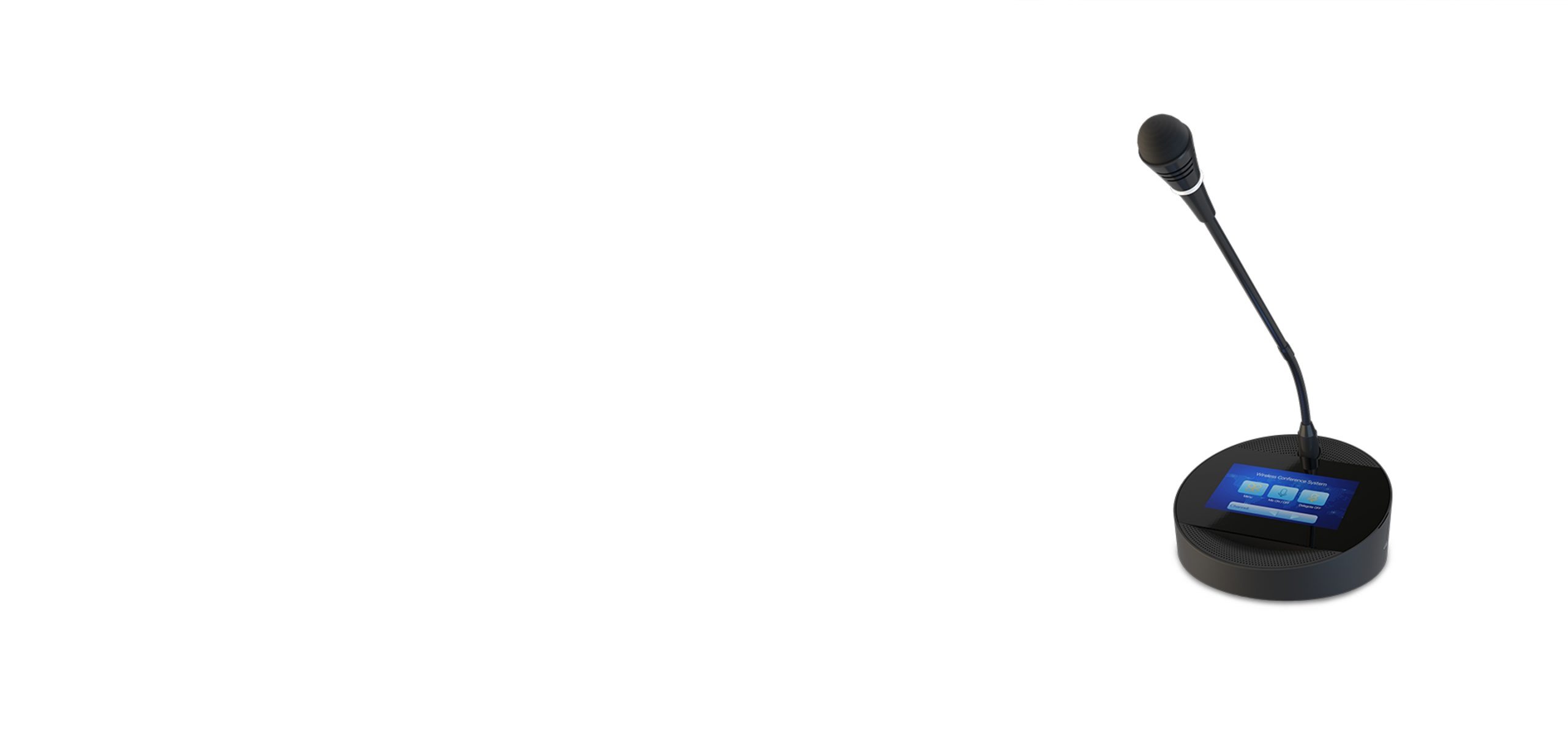

Model TS-W103
Microphone type Cardioid directional electret microphone
Frequency response 70Hz~12KHz
Sensitivity -36±1.5dB
Maximum SPL 100dB(THD>3%)
SNR >80dB(A)
Crosstalk >70dB
Dynamic range >80dB
THD <0.1%
Maximum power consumption 3W
Standard IEC60914
Power supply 18650 lithium battery
Charging method Connect to the charging box via the TYPE-C interface
Color Graphite gray
Sign in Touch screen sign in
Screen IPS screen
Size (L×W×H) 149*145*61(mm)
Installation method Desktop
Wireless frequency range 5.15GHz~5.85GHz
Battery capacity 9600mAh
Microphone pole 380mm (black)
Weight 1Kg
Speech mode working hour 13H
Mixed mode working hour 14H
