Feature:
- 48KHZ sampling rate, clear and bright sound, better than the CD sound quality, built-in DSP audio processor, no low frequency “pop” noise.
- Support functions of speech timekeeping and speech countdown.
- The delegate unit can apply for speaking with approval of the chairman.
- Support internal feedback suppression function, effectively prevent squealing.
- Support voice control function and adjustable voice sensitivity, turn on the microphone intelligently and set the scheduled power-off time.
- Support 5-bandEQ adjustment function, adjust sound effects according to the characteristics of different speakers to achieve the perfect effect.
- The chairman unit has the priority function to turn off all delegate units that are speaking.
- 100M network transmission, hand-in-hand cascade, long-distance transmission with good sound quality.
- Support voting and rating function; chairman unit can initiate voting and sign-in; data statistics can be fulfilled without a PC.
- Support multiple language receiving channels: 15 + 1(default),31 + 1 and 63 + 1(optional).
- The LCD screen can display information such as voting, sign-in, unit status, etc.

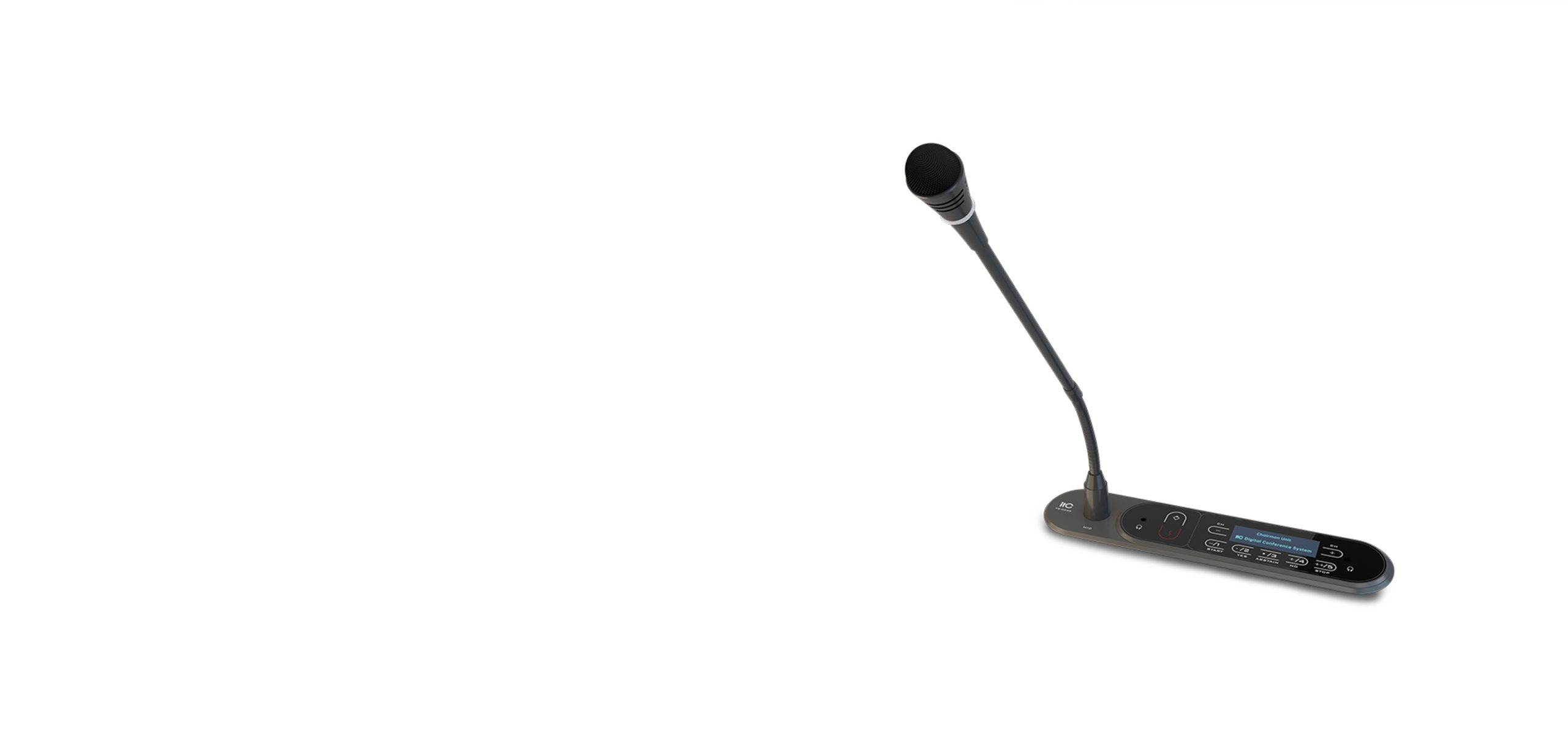

Product Detail
Model | TS-0236 |
Microphone type | Cardioid directional electret |
Frequency response | 80Hz~16KHz |
Input impedance | 1KΩ |
Sensitivity | -46 dBV/Pa |
Maximum SPL | 125dB(THD>3%) |
SNR | >80dB(A) |
Crosstalk | >70dB |
Dynamic range | >80dB |
THD | <0.1% |
Maximum power consumption | 2W |
Headphone load | >16Ω |
Headphone volume | 40mW maximum |
Headphone jack | 3.5mm mono jack |
Standard | IEC60914 |
Connector | With 1.8m 6-pin aviation connector |
Hand in hand extension port | Support |
Power supply | Controller power supply DC36V |
Color | Black |
Voting | 5-key voting, 3-key voting |
Simultaneous interpretation | 16 (default), 32, 64 channels |
Sign-in | Touch button sign-in |
Screen | Full-view low power consumption LCD screen |
Wight | 0.6kg |
Microphone pole | 409mm |
Size | 250×55×85 mm |
Installation | Embedded |
Opening size | 206×48 mm |
