Feature:

  • 1U cabinet design, small in size and light.
  • Adopt the latest class D digital amplifier design, with low distortion and high efficiency.
  • Adoptswitched power supply technology, with high efficiency, to effectively suppress the harmonics of the power supply, meeting the EU green power supply standard.
  • Adopt smart peak clipper to control the power module and speaker system to work in a safe range.
  • Designed with standard XLR input interface and LINK output interface, convenient for different user needs.
  • Support soft start to prevent absorbing large currents from the power grid during startup and interfering with other electrical equipment.

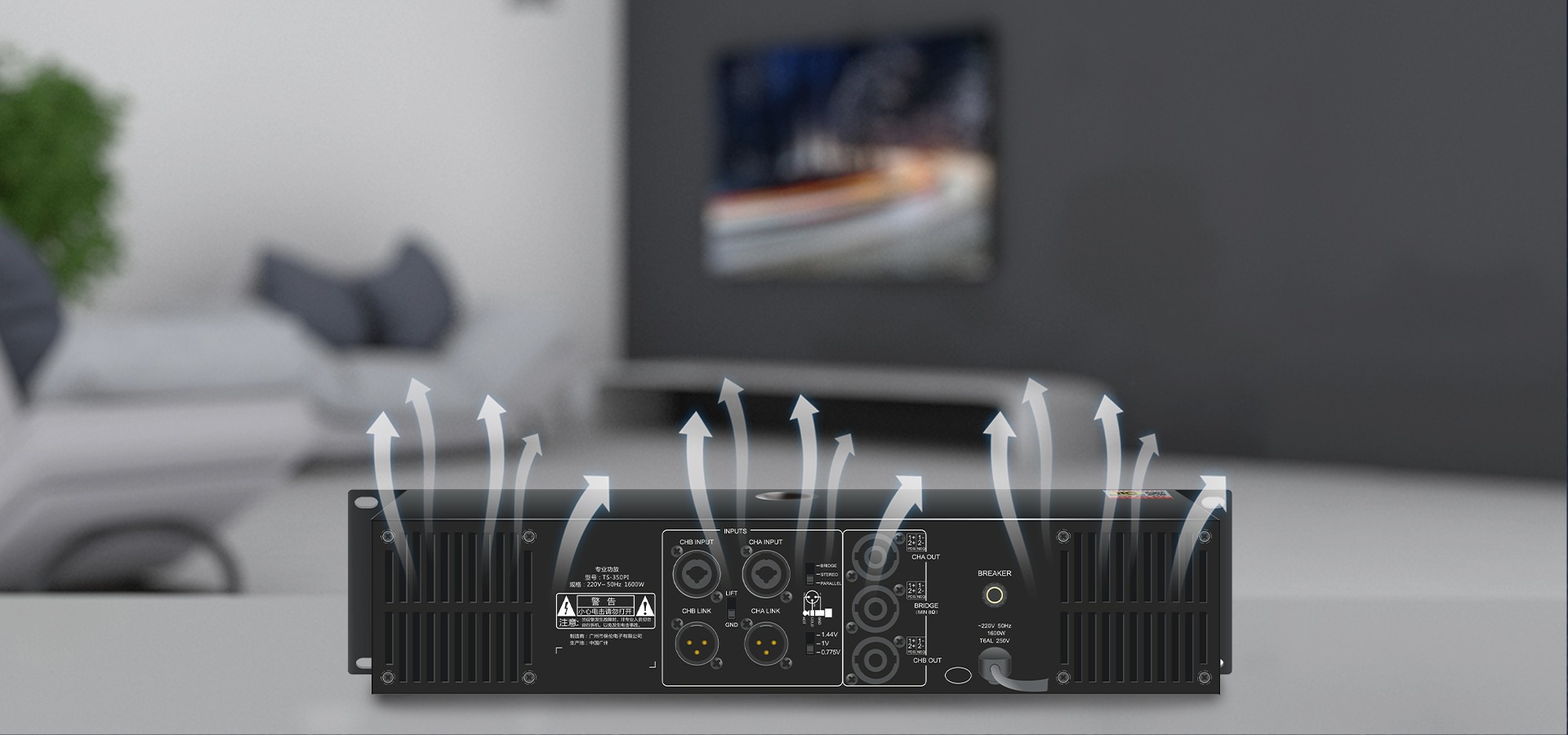

  • Smart control forced heat dissipation design, low fan noise and high heat dissipation efficiency.
  • Support three optional modes: mono, stereo, bridge.
  • Support overvoltage protection, Undervoltage protection, overcurrent protection, DC protection, output short circuit protection, temperature control fan and so on.

Product Detail

Model TC-2350B
Output power Stereo@8Ω: 350W×2

Stereo@4Ω: 600W×2

Input sensitivity 2.2dBu(1V)
Input impedance 10KΩ
Frequency response (@1W Power) 20Hz-20KHz/±1dB @8Ω
THD+N (@1/8 power) ≤0.01%
Isolation (@1KHz) ≥80dB
Damping coefficient(@1KHz) ≥200@ 8 ohms
SNR (A-weighted) ≥93dB
Input voltage ~220V/50Hz
Overall power consumption 200W
Dimension (L*W*H) 484*206*44
Weight 3.8kg
