Description:

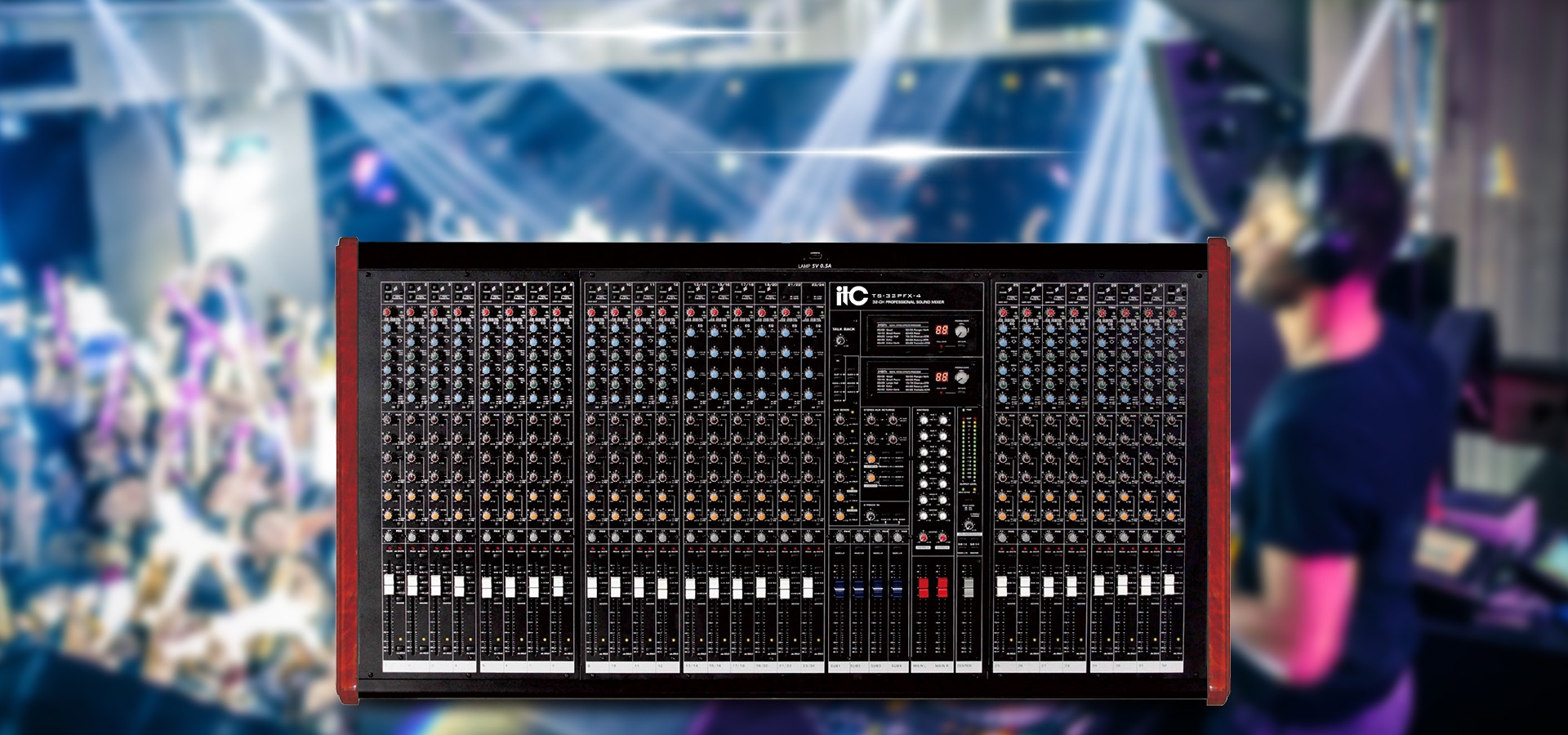

Large professional mixer adopts ultra-low noise discrete microphone preamplifier and +48V phantom power; 26 channels of mono, 6 channels of stereo channel inputs, dual audio processor, and four grouping functions. It is suitable for all kinds of performance venues, conference rooms, schools, intelligent buildings, industrial and mining enterprises as well as for personal use.
Feature:
- 26 gold-plated XLR microphone inputs and balanced line inputs.
- 6 stereo TRS balanced input interfaces.
- Ultra-low noise preamplifier and +48V phantom power.
- Extremely high space provides a wider dynamic range.
- All input channels are equipped with mute, SOLO functions, overload LED & low cut filter.
- MIC channel is equipped with low-cut filter and stage.
- Each channel has 6AUX transmission, equipped with AUX1-2/AUX3-4/AUX5-6 andPRE/POS switchable faders.
- Microphone channel intermediate frequency supports3-band EQadjustment.
- Stereo channel has 4-band
- There are SUB1-2, SUB3-4, MAINL-R and center signal distribution switch.
- 100mm high precision fader.
- Each single channel is equipped with plug-in interface and direct output interface, plus the main plug-in interface, which can flexibly connect to external devices.
- (SUB1-SUB2) (SUB3-SUB4) | (L-R) (center) A&B matrix
- Control room/mobile phone
- 2-TRACK IN can be distributed to the main microphone, control room/headphone output.
- Fully assignable intercom system.
- WithaUSB port, support recording SUB1-2 or main output, and transmitting to CH23-24 system bus for playback.
- 100 options of DSP effects.



Product Detail
Model | TS-32PFX-4 |
Input | |
Output channel | 14 outputs (4 groups, 6.5 single-plug interface output; 6 auxiliary, 6.5 single-plug interface output; 1 stereo monitor, 6.5 single-plug interface output; 1 stereo RCA output port; 1 stereo main output XLR/6.5 single plug interface; 1 channel center audio output/6.5 single plug interface.) |
Input impedance | Mic 2 kohm balanced
Line 10 kohm balanced |
Input gain | Mic continuous variable: 0dB to +50dB Line-mono continuous variable: -15dB to +35dB Line-stereo continuous variable: -20dB to +20bB |
Maximum input level | Mic +22d Bu Line-(mono) +22d Bu Line-(stereo channel) +22dBu |
Interface transmission impedance | 120ohm unbalanced |
Interface transmission level/maximum | -10dBu/+22dBu |
Loop impedance | 10 kohm unbalanced |
Interface loop level/ maximum | -10dBu/+22dBu |
CMR at 1 kHz Line(20Hz-20kHz) | >60dB |
Frequency response | Mixing to mixing 20Hz-20kHz+/-3dB |
SNR (20Hz-20kHz) | Mic EIN ref.150ohms-117dBu |
System noise (20Hz-20kHz) | |
Summing noise | -90dBu (24 channels of router to fader pull down) |
Connection mixing noise | -86dBu (24 channels of router to 0dB, pan center) |
Distortion at 1kHz | Mixing to device interface (+30dB overall gain, +20dBu output) <0.009% Mixing to device interface (+30dB overall gain, +20dBu output) wavelength 0.03% |
Crosstalk at 1kHz | Channel to channel>-80dB Mixing to mixing>-80dB Channel to mixing>-80dB |
Fader attenuation | >100dB |
Output (rated signal level mic-50dBu to 0dBu-Line 0dBu) | |
Output impedance | All lines output 120ohm unbalanced |
Interface transmission impedance | 120ohm unbalanced |
Interface transmission level/maximum | +22dBu |
Interface loop impedance | 10 kohm unbalanced |
Interface loop level / maximum | +22dBu |
Maximum output level at XLR main output | +28dBu |
All outputs on 1/4″ plug | +22dBu |
Headphone | +22dBu/600ohm |
Main mixing section | |
Treble slope | +/-15dB @ 12kHz |
Alto-treble signal bell (stereo) | +/-12dB @ 3kHz |
Alto-treble signal bell (single) | +/-12dB frequency range 100Hz-80kHz |
Alto-bass signal bell (stereo) | +/-12dB @ 500Hz |
Bass signal bell (stereo) | +/-15dB @ 80Hz |
High pass filter slope | -18dB/Oct. @ 75Hz |
Power supply | 100-240V-50/60Hz |
Net weight | 19.42kg |
Gross weight | 23.5kg |
Carton size | 618×1078×266mm |
Product size | 530×1020×190mm |
