Feature:

  • 48KHz sampling rate, clear and bright sound, better than CD sound quality; internal DSP audio processing technology, making no low-frequency impact sound; internal feedback suppression function can effectively prevent howling.
  • Support functions of speech countdown and speech time
  • The chairman unit has a priority function to turn off all delegate units that are speaking. And with the approval of the chairman, the delegate unit can apply to speak.
  • With voice control function, it can adjust the voice control sensitivity, turn on the microphone intelligently and set the shutdown
  • With 5-band EQ adjustment function(after logging in to the PC software and entering the password), it can adjust sound effects according to the voice characteristics of different speakers to achieve the perfect effect.
  • Customized voting function is flexible and convenient.
  • Adopt 128-bit AES encryption technology, support WPA/WPA2 wireless security technology, prevent eavesdropping and unauthorized access, and provide higher confidentiality of the conference system.
  • A 3-inch color screen can display information such as microphone on/off, ID settings, power status, and signal strength, and support multi-point capacitive touch button.
  • Support clock display function for the display of date and time: year, month, date, hour, and
  • Standard 6 large-capacity lithium batteries, with a battery capacity of 14400mA/h, support 15 hours of speech or 24 hours of working.
  • It has a USB charging port and supports 18W fast charging.
  • Support four interface language switching: Chinese, English, Russian, and French.

Product Detail

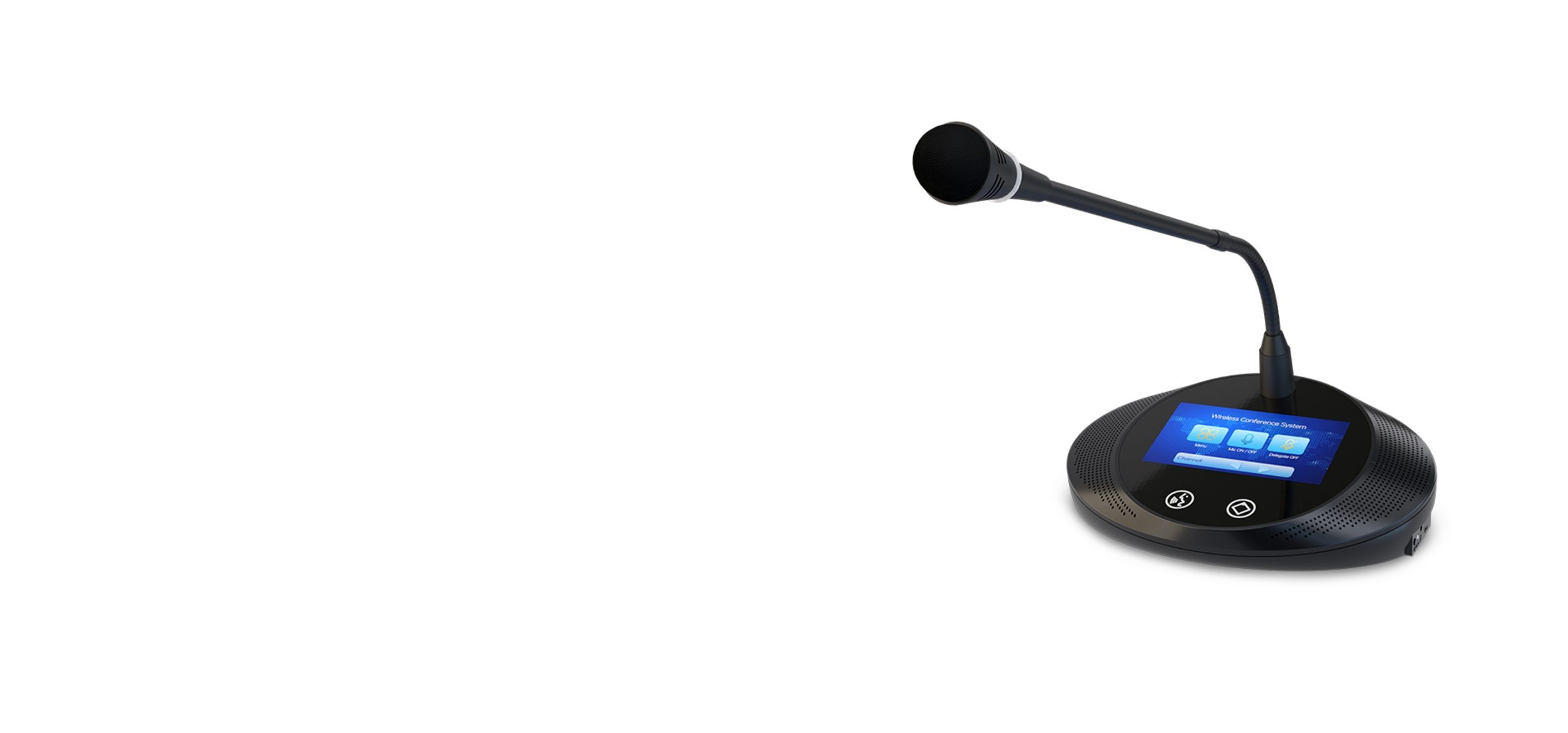

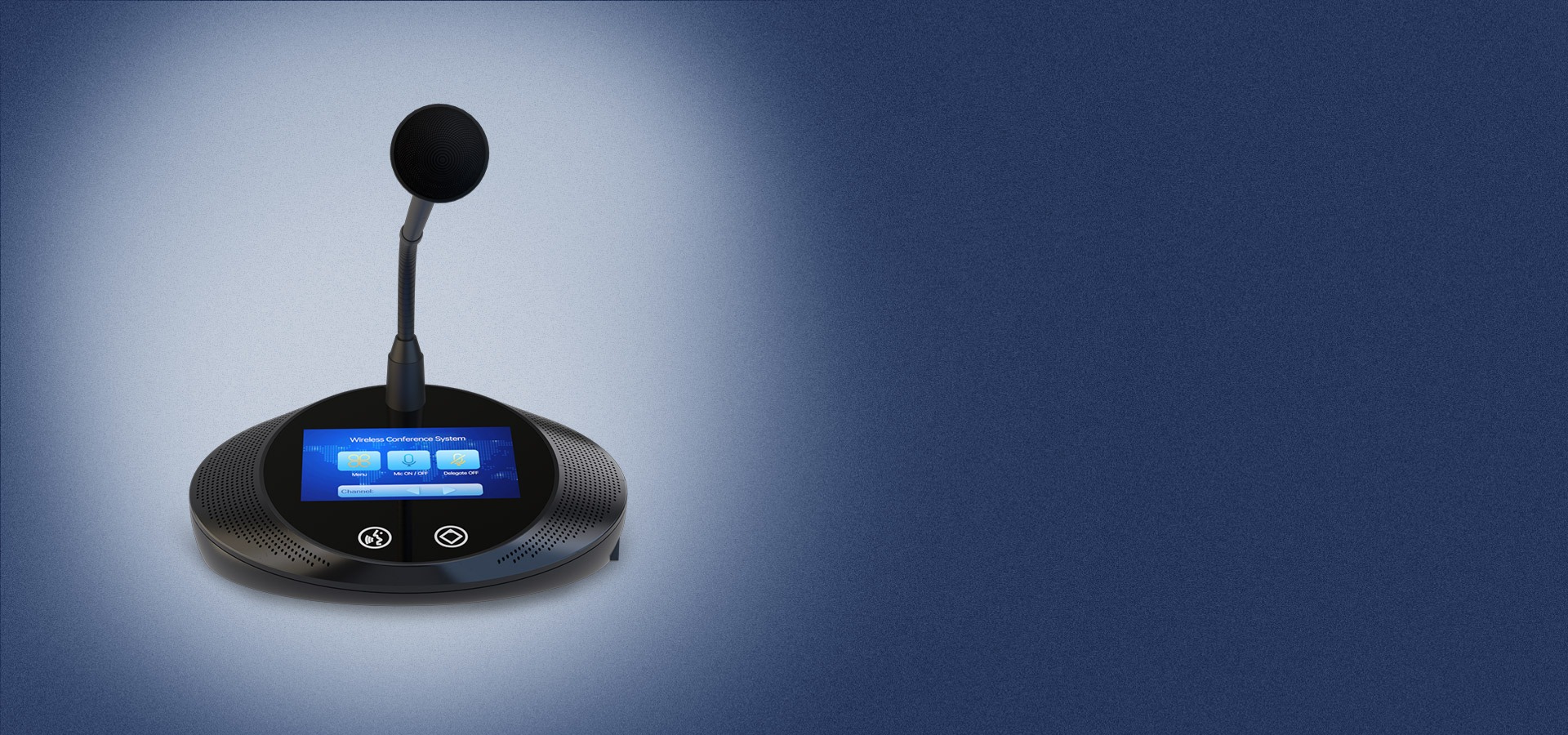

Model TS-W101
Microphone type Cardioid directional electret microphone
Frequency response 70Hz~12kHz
Sensitivity -34±2dB
Maximum SPL 100dB(THD>3%)
SNR >80dB(A)
Crosstalk >70dB
Dynamic range >80dB
THD <0.1%
Maximum power consumption 3W
Standard IEC60914
Power supply Battery power supply
Color Gray
Voting Five-key voting, three-key voting, custom voting
Sign in Key sign in
Screen 4.3-inch color screen
Size (L×W×H) 196x134x63 mm
Installation method Desktop
Wireless frequency range 5GHz
Battery capacity 14400mAh
Weight About 0.7kg
Standby mode working hour 24H
Speech mode working hour 15H
Mixed mode working hour 14H
Microphone pole 409mm
