Description:

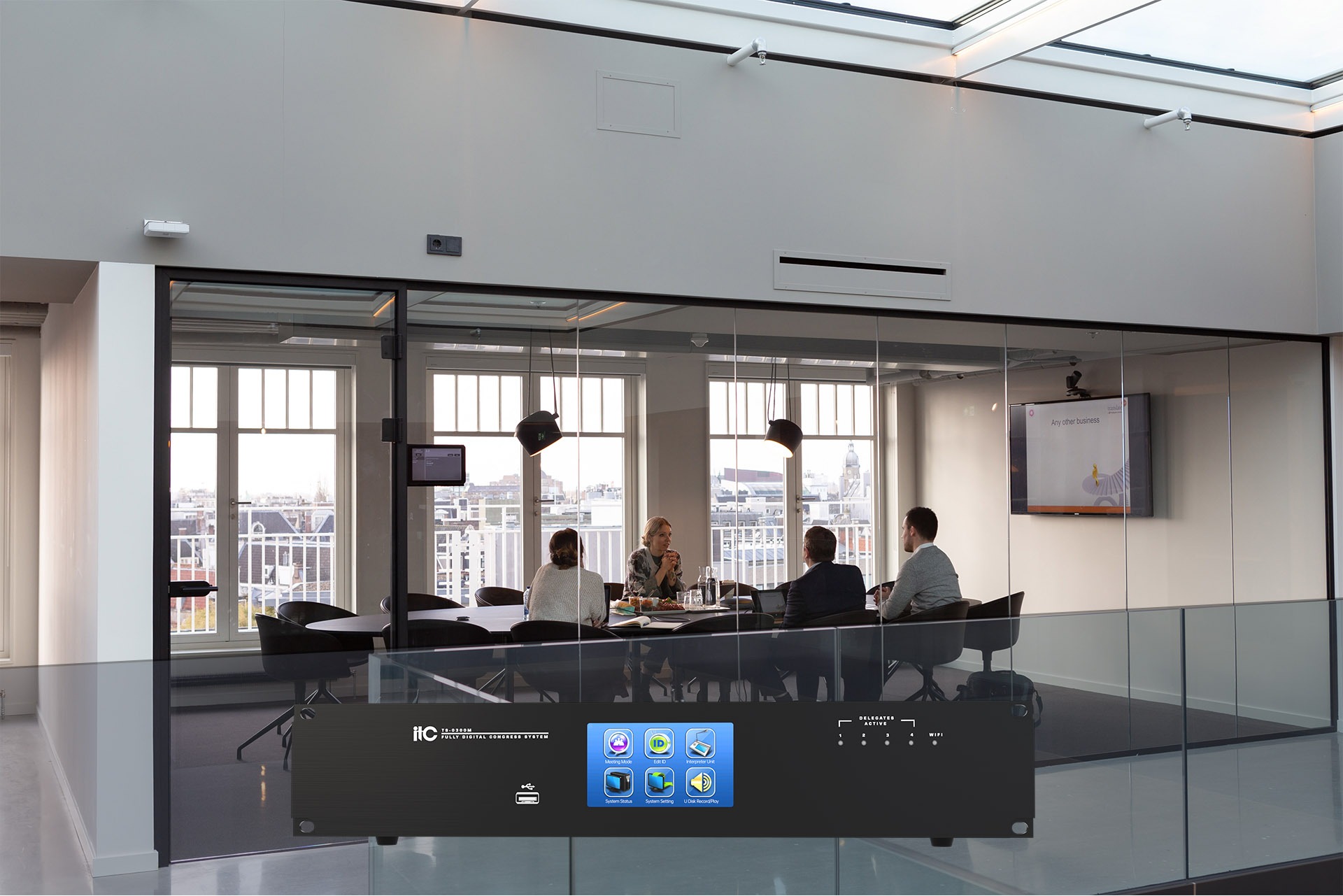

Using the 5GHz communication frequency band, it has astronger anti-interference ability, provides greater bandwidth and transmission speed, and is not interfered with by mobile phones and other Bluetooth devices, ensuring the best signal reception. It is widely used in round table conference rooms, square table conference rooms, multipurpose halls, banquet halls and other places.
Feature:
- Adopt 128-bit AES encryption technology, support WPA/WPA2 wireless security technology, prevent eavesdropping and unauthorized access, and provide higher confidentiality of the conference system.
- Built-in high-performance dual CPU processorhas super processing capability; the core has a 96-bit 50MIPS digital audio DSP processor to support stereo audio ADC and DAC; the controller supports sampling rates in the range of 8KHz to 96KHz, supports digital volume control and adjustable output audio volume, supports equalization and noise cancellation and other processing algorithms. It provides users better sound experience.
- Original digital processing and transmission technology, uncompressed audio transmissionwith20Hz~20KHz bandwidth, cat5e cable, long-distance and reliable information transmission, perfect sound quality. With a WIFI network interface, the number of wireless AP can be extended by connecting to a POE network switch to provide greater wireless coverage.
- It supports the simultaneous use of the WIFIconference systems and full digital conference system. It has a large system capacity and 4 conference unit output interfaces. The system supports a maximum of 4096 wired conference units and 300 wireless conference units. The system supports up to 8 wired microphones and 6 wireless microphones opened at the same time.
- Supportsimultaneous interpretation function, support the transmission of 15+1 wired simultaneous interpretation and support a maximum of 63+1 wired simultaneous interpretation.



Product Detail
Model | TS-W100 |
Microphone capacity | A maximum of 4096 wired units and 300 wireless units |
Number of channels | 16CH(default), 32CH, 64CH |
Frequency response | 20Hz~20KHz |
SNR | >85dB(A) |
Dynamic range | >80dB |
THD | <0.05% |
Main power | 90~132VAC/180~264VACbyswitch |
Audio input | LINE IN1:350mV balanced;LINE IN2:350mV unbalanced |
Audio output | LINE OUT1:1V balanced;LINE OUT2:1V unbalanced |
Output load | >1KΩ |
RJ45 network port | Connected to the computer |
USB interface | Record/playback |
Amplifier output | 2×25W/4Ω |
Static power consumption | 30W |
Output power consumption | 320W |
Connection method | Special cable (6 pins) |
Joint reliability | Reliable |
Standard | IEC60914,compatible with GBT15381-94 standard |
Working temperature | -10℃~+45℃ |
Working humidity | 5%~80% relative humidity, no condensation |
Touch screen | 4.3-inch TFT colorful touch screen |
Color | Black |
Weight | About 3Kg |
Size | 484*305*88mm |
Installation | 19-inch standard cabinet |
