• Adopt an integrated design, built-in hardware video processing unit and HD camera; embedded hardware solution, high efficiency and low latency.
  • Using a complete native Android underlying operating system, Android video conference applications can be seamlessly transplanted.
  • SupportITU-T H.323 standard protocol and has excellent compatibility.
  • Support H.264 BP, H.264 HP video codec protocol, support 1080P, 720P, VGA, CIF, QVGA, QCIF video resolution; support CIF, 4CIF, 720P, 1080P and other resolutions, support 1-30 frame rate; support 64Kbps-8Mbps access rate.
  • Supports audio codec protocols such as G.711, G.722, OPUS, etc.
  • Support electronic whiteboard, file sharing, conference sign-in, electronic voting and other digital conference function.
  • Support H.239 dual stream function; while the mainstream reaches 1080P, the auxiliary stream can also reach 1080P.
  • Support mouse control mode, support drag and drop the video window by mouse.
  • Supportcontrollingthe dual-stream bandwidth of all remote venues, support PTZ control for remote venues, support control of the speech of other terminals, and support operations such as sending scrolling messages and banners.
  • Support wireless streaming function, send wireless content to other venues for simultaneous viewing.

Product Detail

Built-in HD cameraSensor: 1/2.5 inches, CMOS effective pixel: 2.07 million; Scanning mode: progressive;

Lens focal length: f=3.5mm; horizontal field of view: 84°; autofocus: support

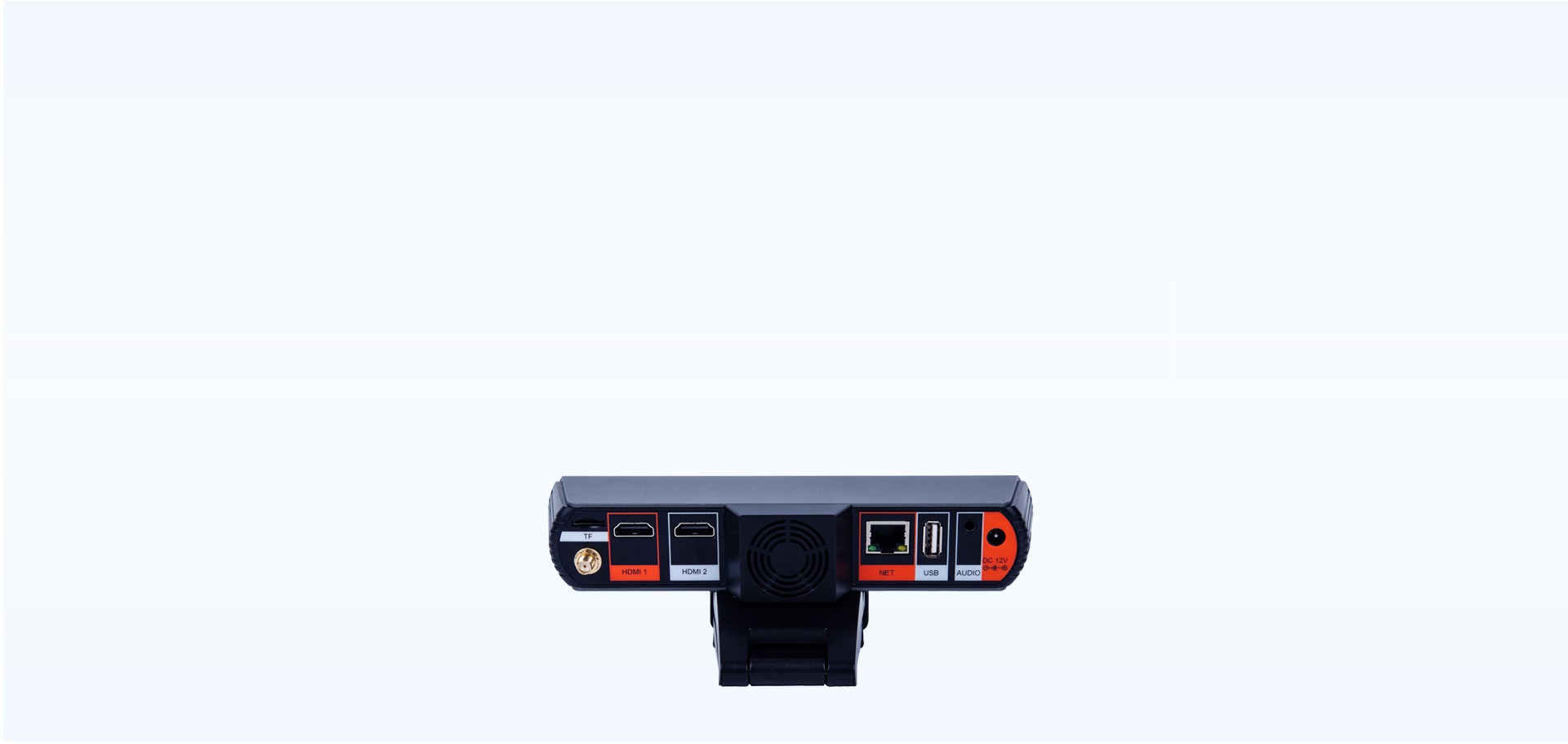

Video outputTwo HDMI output interfaces
Built-in microphoneOmnidirectional pickup, pickup distance up to 3 meters
Audio interfaceOne 3.5mm audio interface (integrated input and output), two HDMI output interfaces (support audio)
USB interfaceOne USB2.0
TF interfaceOne TF card interface
InternetOne RJ45, 10/100Base-T; one WIFI network
Dimension195mm×34mm×59mm (excluding protruding parts)
Gross weight0.25kg
Working voltageDC 12V
Max power consumption9.6W
Ambient temperature0℃~40℃(working state), -40℃~70℃(non-working state)
Relative humidity10% ~ 80% (working state), 0% ~ 95% (non-working state)
Ambient noiseLess than 46dBA SPL
Illuminance5lux (minimum illuminance), the recommended illuminance is greater than 300lux
