Application Scenarios:

Medium and large theaters, outdoor performances, theaters, stadiums, clubs, nightclubs, entertainment venues, bars, leases, auditorium, banquet halls, concerts, etc.

Features

  • Adopt the latest class D power amplifier design scheme, with low distortion and high efficiency;
  • The power supply adopts switching power supply, which has high efficiency; soft start when starting to prevent the large current from being absorbed into the grid when starting up and disturbing other electrical equipment.
  • Effectively suppress power harmonics and meet EU green power standards;
  • Intelligent peak clipping limiter, control the power module and speaker system to work within a safe range;
  • Standard XLR+TRS1/4″ composite input interface, simple interface is more convenient for different user needs.
  • Turn on the power sequence to turn on the power amplifier function.
  • The remote interface can use the central control system to turn on and off the power amplifier.
  • Built-in low-cut switch selection function.
  • Adapt to the needs of different occasions, optional stereo or parallel working mode.
  • With over-voltage protection, under-voltage protection, over-temperature voltage limit, over-temperature shutdown, over current voltage limit, over current shutdown, DC protection, output short circuit protection, temperature control fan, and other functions.

Product Detail

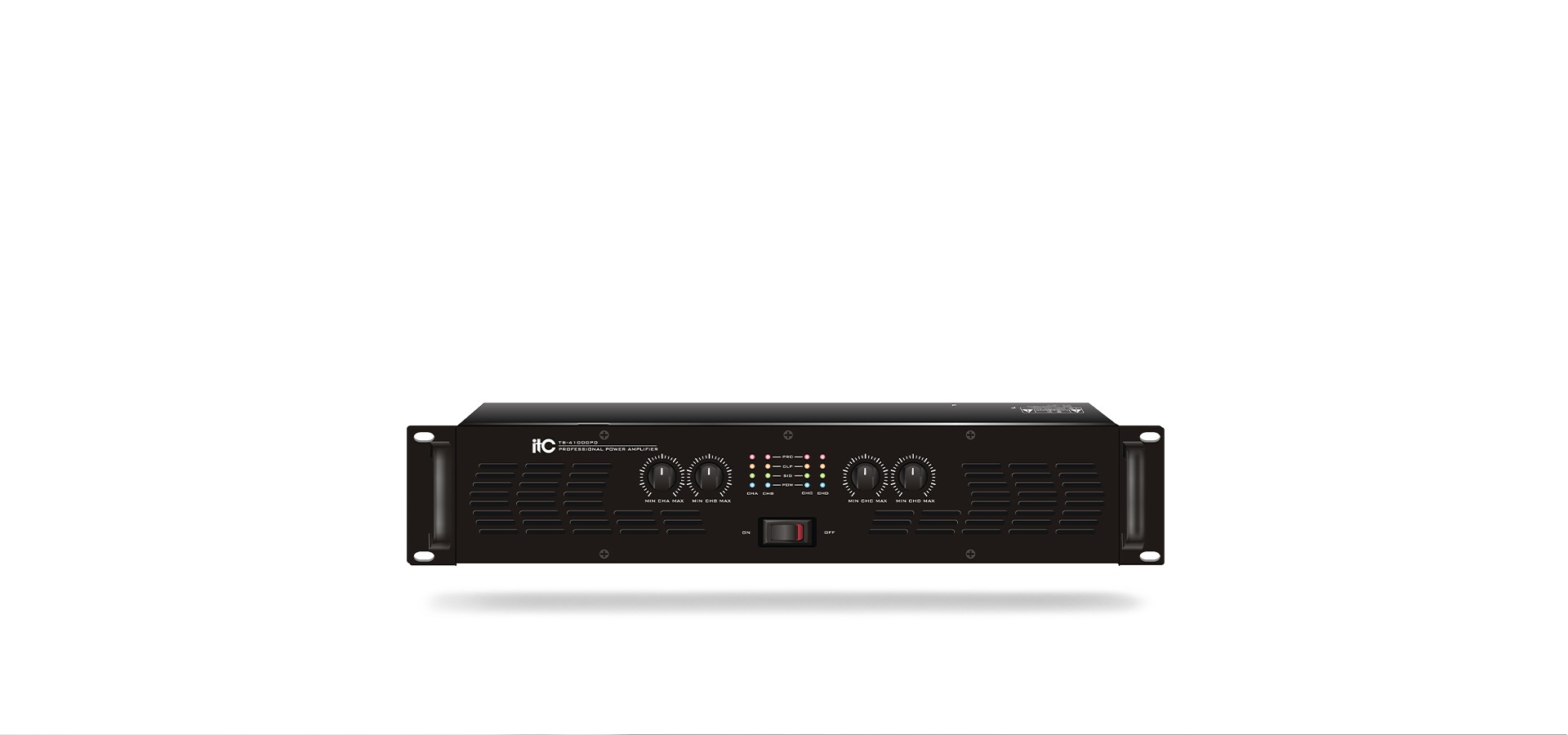

Model TS-41000PD
Output power(20-20KHz/THD≤1%) a. stereo/parallel 8Ω×4: 750W×4

b. stereo/parallel 4Ω×4: 1000W×4

Connection XLR, TRS interface
Voltage gain (@1KHz) 37.8dB
Input sensitivity 1V
Input impedance 10KΩ unbalanced, 20KΩ balanced
Frequency response(@1W power) 20-20KHz/+0/-2dB
THD+N (@1/8 power) ≤0.05%
SNR(A-weighted) ≥100dB
Damping coefficient(@ 1KHz) ≥200@ 8 ohms
Resolution (@1KHz) ≥80dB
Protection method Over current protection, DC protection, short circuit protection
Indicator Power, protection, distortion

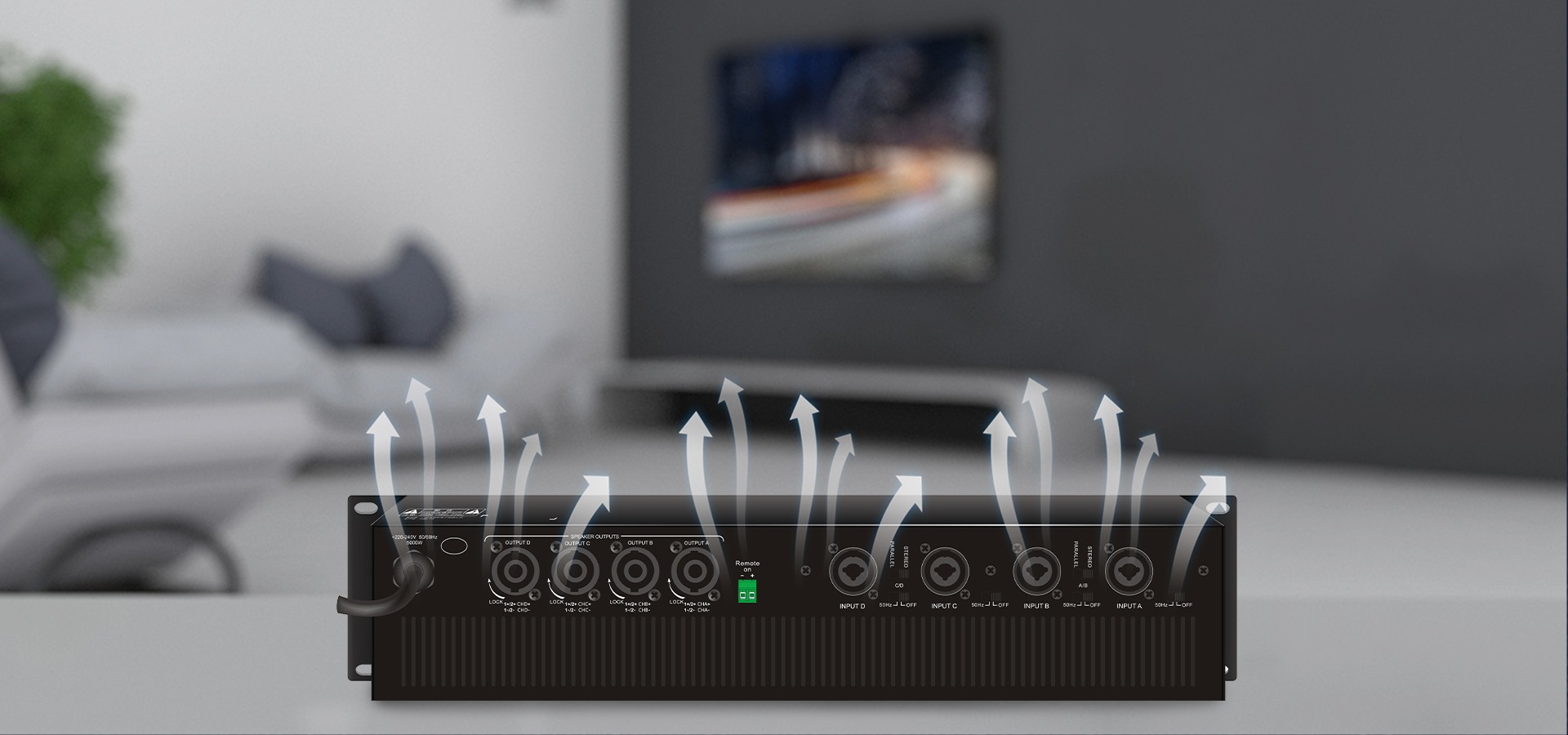

Cooling method Fan cooling
Power supply ~220V/50Hz
Maximum power consumption 5000W
Size 483x405x88 mm
Weight 11.5Kg
