TS-0653 automatic three positions recording and broadcasting system using integrated hardware equipment, embedded Linux operating system, B / S architecture design, highly integrated embedded high-definition video capture module, recording module, live module, image recognition&tracking module, direct broadcasting Switching module, image segmentation and splicing module, the local echo output module, to realize the functions of video live broadcasting, intelligent direct broadcasting, high-definition recording, touch screen control, image recognition tracking and other functions. It’s the latest generation of independently researched and developed multimedia information recording and dissemination equipment for teaching video, online learning, and interactive teaching.

Product Detail

Video protocol H.264
Code stream 256Kbps~12Mbps
Video output format


Audio protocol AAC
Live protocol Support TS, RTSP, RTP and RTMP real-time protocol streams
Network protocol Support TCP, UDP, RTMP, RTSP, FTP, DHCP, HTTP protocol

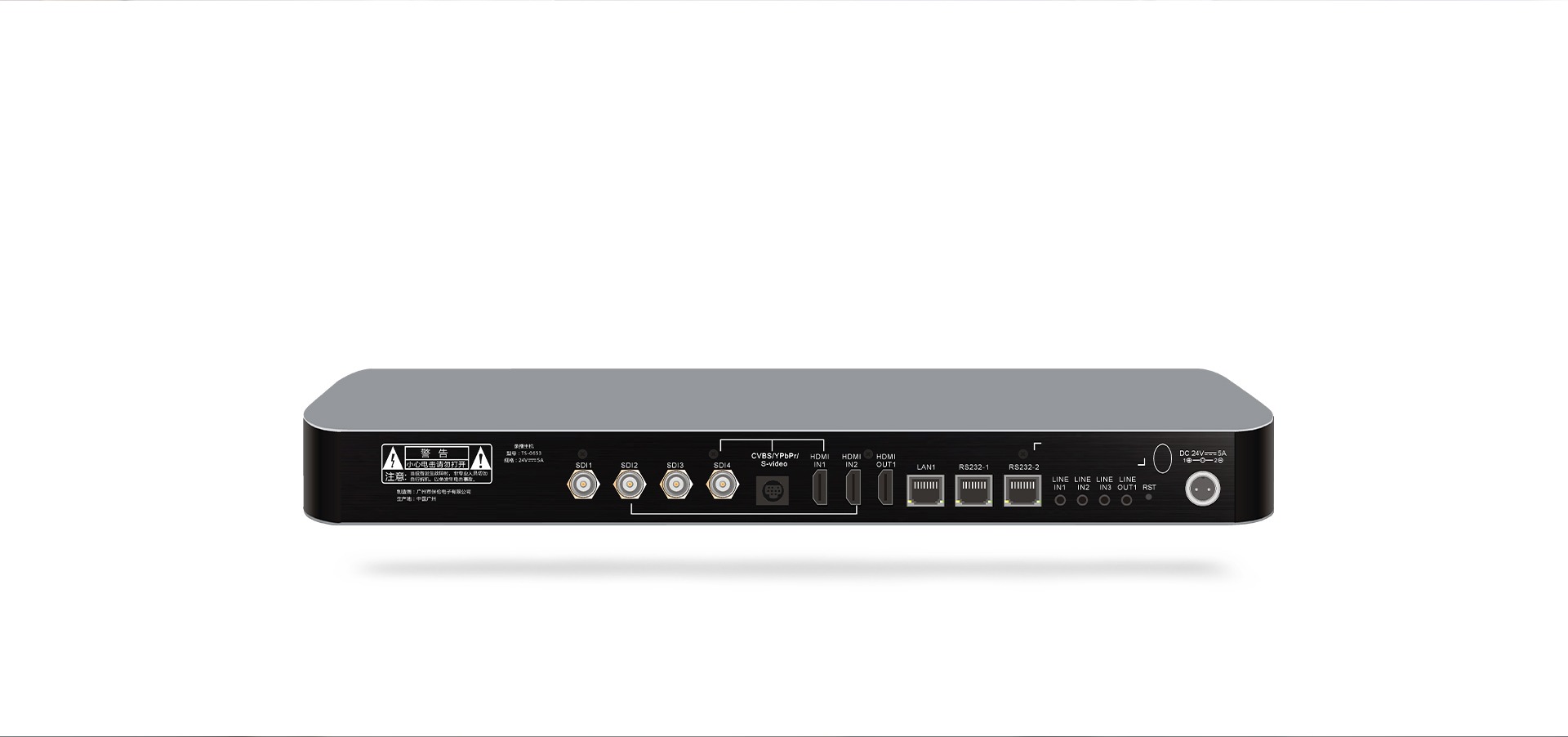

Video input interface 4 SDI HD video interfaces, 2 HDMI video interfaces, 1 composite video interface
Video output interface 2 HDMI video interfaces
Input resolution 1920x1080P60/P50/I60/I50/P30/P25fps
Output resolution 1920x1080P60/P50/P30/P25fps, 1280x720P60/P50/P30/P25fps,  720X576P60/P50/P30/P25fps
Audio input interface Two 3.5mm audio interfaces (synchronous output)
Network port 1 Gigabit Ethernet port
USB interface 2 USB 2.0 interfaces
Control port 2 RS-232 interfaces

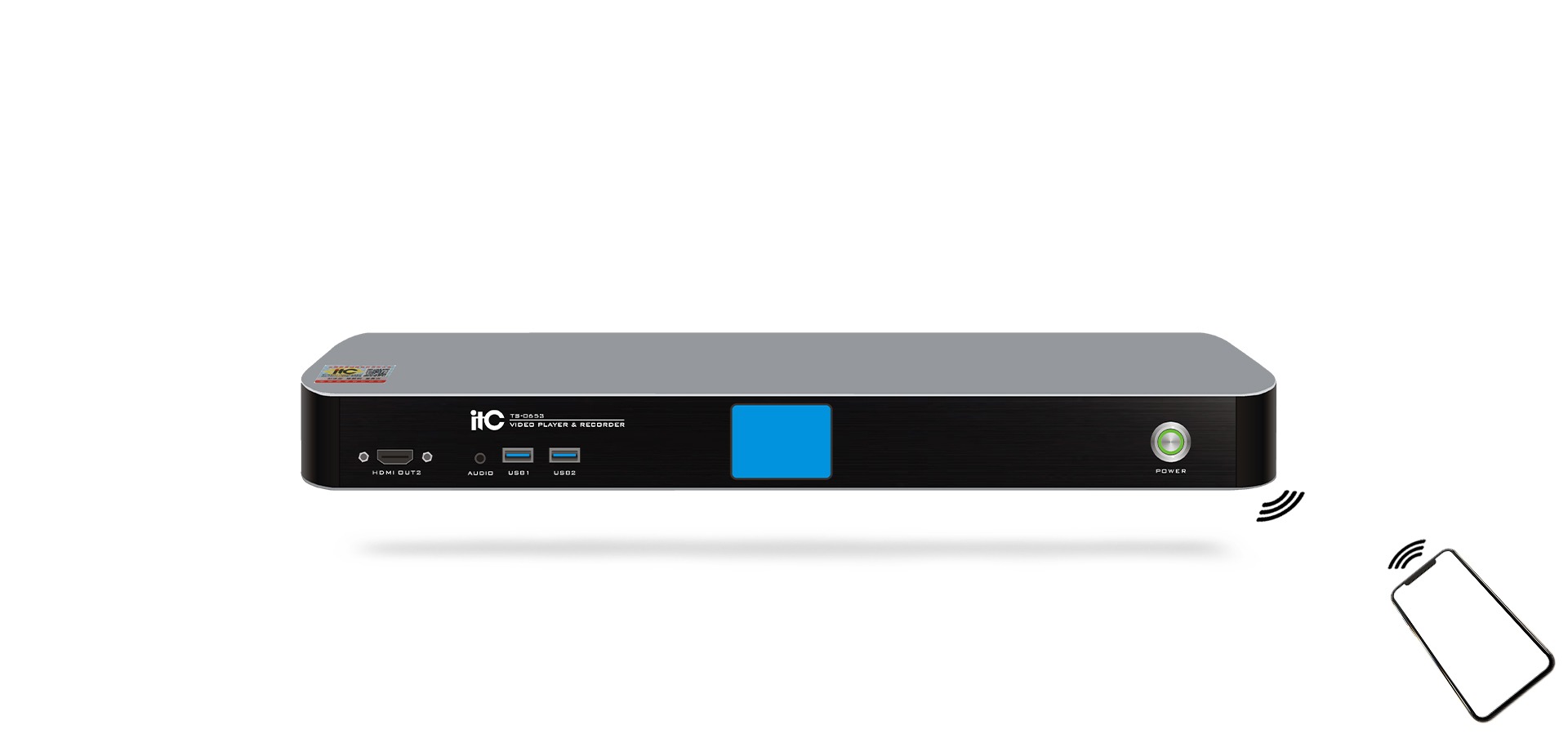

Panel button 1× power switch
Storage 2TB
Power supply DC 24V/5A
Power consumption port 45W
Weight 484×310×60mm (L×D×H)
Size 484×310×60mm (L×D×H)
Working temperature -10°C~55°C (under well-ventilated conditions)
Relative humidity 20%~80%, no condensation
