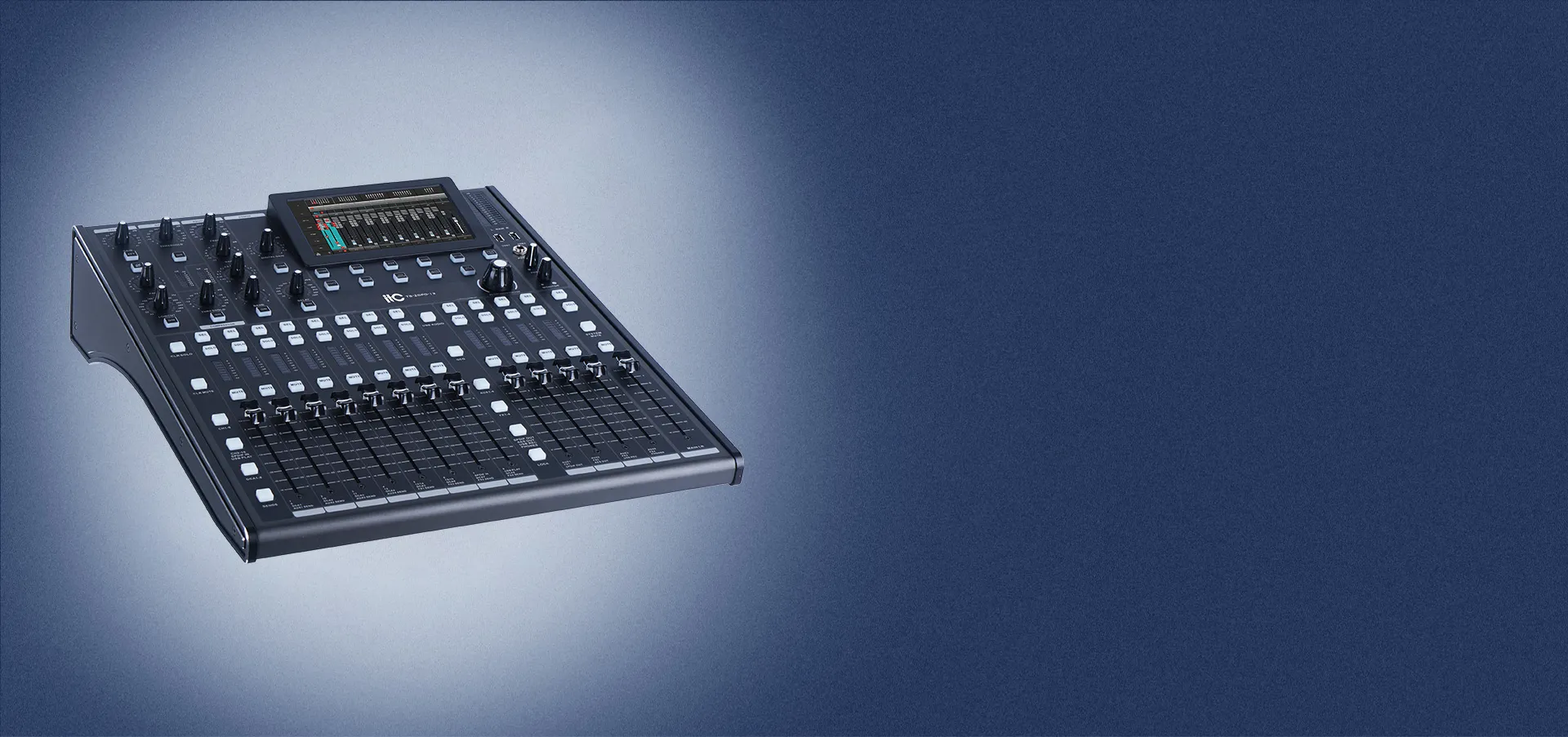

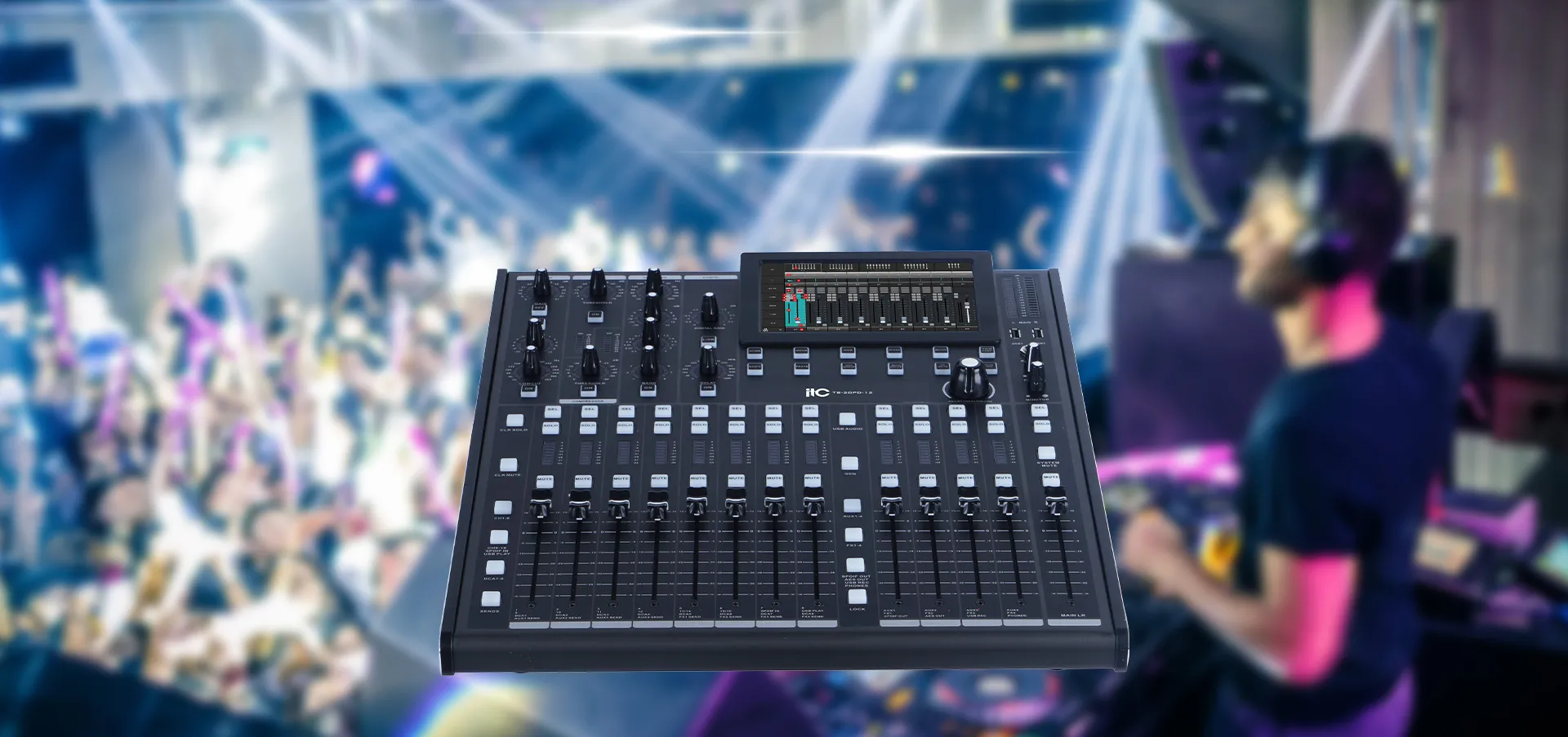

Digital mixer effectively integrates the digital mixing system with innovative design and powerful DSP functions, and adopts a new concept of integrating modern digital and traditional operations, bringing users a professional functional experience. With simple operation interface and professional mixing effects, it can not only play an outstanding role in professional performance but also fully satisfy inexperienced individual users with powerful effects.

Feature :

  • A 7-inch 1280×800 true-color resistive touch screen, a digital encoder and a professional operating panel with dedicated buttons can make all settings quickly and conveniently.
  • 20-channel input: 12-channel microphone analog input; 2 sets of stereo input (4 inputs); 2-channel S/PDIF digital input; 2-channel USB stereo playback.
  • 12-channel output: 2-channel MAINLR bus output; 4-channel AUX auxiliary output; 2-channel MONITORLR monitor output; 2-channel AES/EBU output; 2-channel S/PDIF digital output.
  • Built-in USB recording and playback functions, supporting APE\MP3\FLAC\WAV lossless audio formats; USB sound card supports multi-track recording and playback;
  • With 8-channel DCA grouping, and 8-channel mute grouping. Input, output and effect channels can be programmed.
  • Each input channel has 6-segment parametric equalizer, compressor, noise gate, polarity, and delay.
  • Each output channel has 8-segment parametric equalizer, 31-segment graphic equalizer, high and low pass filter, compressor, and delay.
  • Input built-in adaptive notch feedback suppression algorithm, automatic mixing;
  • Various types of effects such as delay, chorus, reverb, and pitch shifting;
  • Support 255 groups of scene presets, which can be imported into USB for storage and easy recall.
  • Built-in sine wave, and white/pink noise signal generator.
  • The unique Link connection function can be used for adjacent channel binding settings; with panel lock to prevent accidental touch and operation.
  • Support channel name customization
  • Support full-featured control software for Windows, Linux, MacOS, Android, IOS and other operating systems.

Product Detail

Input 12-channel microphone analog input; 2 sets of stereo input (4 inputs); 2-channel S/PDIF digital input; 2-channel USB stereo playback
Output 2-channel MAINLR bus output; 4-channel AUX auxiliary output; 2-channel MONITORLR monitor output; 2-channel AES/EBU output; 2-channel S/PDIF digital output
THD & Noise <0.003% @ 4dBu A+ weight
Sampling Rate 48K
SNR -92dBu A+ weight
Screen 7-inch HD touch screen, 1024 × 600 resolution
Frequency Response (20~20KHz) 20HZ ~ 20K Hz ,+0.1dB ~ -0.3dB
Quantization Bits 24bit
Maximum Level (input) +22dBu, balanced
Maximum Level (output) +22dBu, balanced
Phantom Power 48V
A/D Dynamic Range 110dB
D/A Dynamic Range 110dB
Input to output dynamic range 108dB
Input Impedance (Balanced) 2.4KΩ
Output Impedance (Balanced) 100Ω
Channel Isolation@1KHz 70dB@1kHz
Operating Temperature 0℃-55℃
Power Supply 220V/50Hz
Power Consumption 35W
Product size(L×H×D) 416*504.9*145.8(mm)
Package size(L×H×D) 500*580*223(mm)
Net weight 9.15kg
Gross weight 10.1kg
