Description:

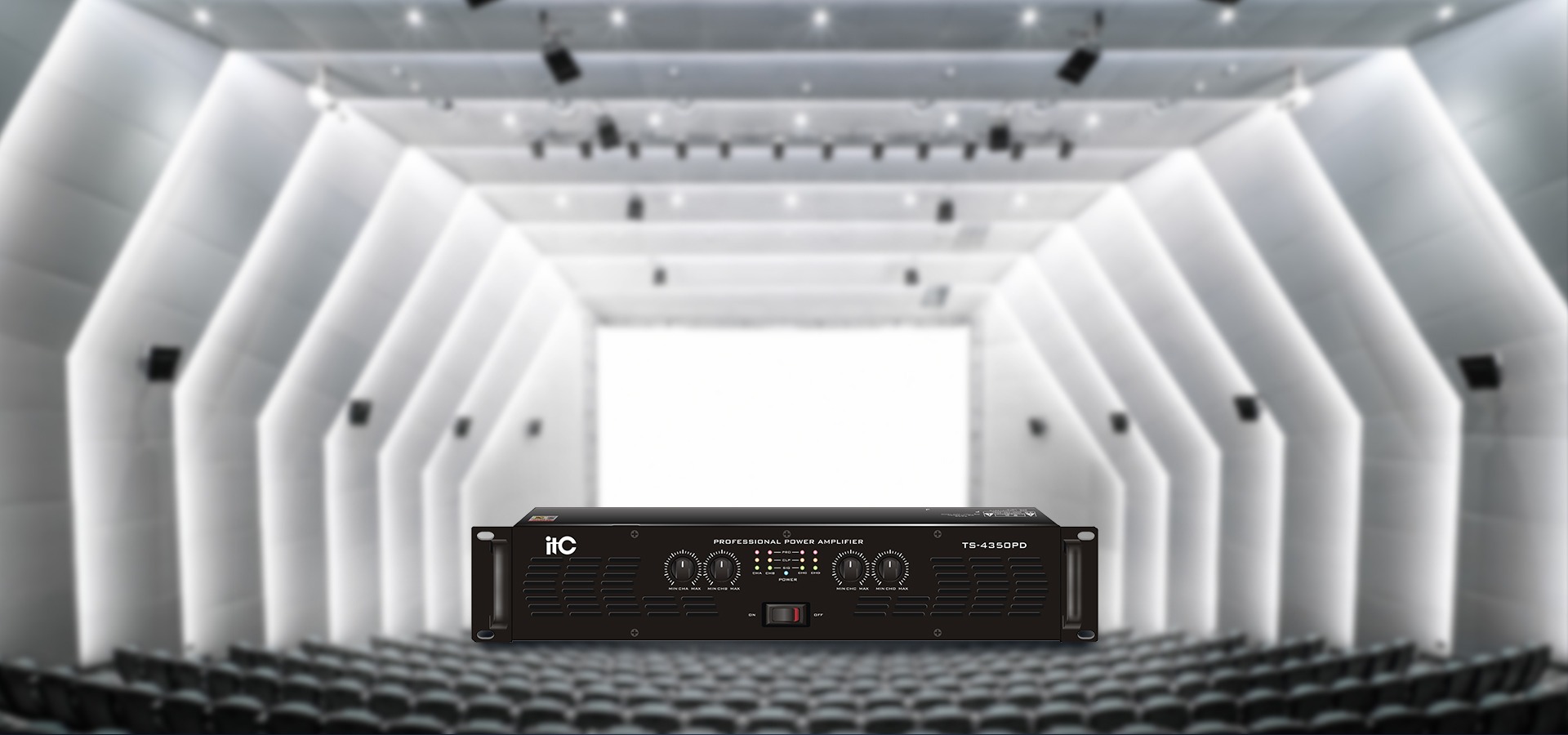

It is suitable for medium and large theaters, outdoor performances, stadiums, nightclubs, entertainment venues, bars, banquet halls, concert halls and so on.

Feature:

  • The latest class-Damplifier design has low distortion and high efficiency.
  • Switching power supply, with high efficiency; soft starter can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.
  • Effectively suppress power harmonics, and meet the EU green power standard.
  • Intelligent peak clipper controls the power module and speaker system to work within a safe range.
  • Standard XLR + TRS1/4″ composite input interface, simple interface design is more convenient for different use
  • The amplifier has three options of input sensitivity, which can easily accept a wide range of signal source input.
  • Suitable for different places, stereo mode or bridge mode is optional.
  • Grounded input pin and suspension control switch can effectively suppress noise.
  • With overvoltage protection, under-voltage protection, over-temperature voltage limit, over-temperature shutdown, over current voltage limit, over current shutdown, DC protection, output short circuit protection, temperature control fan, amplifier frequency synchronization, PWM frequency synchronization, etc.
  • Built-in recoverable unique cut-off switch.
  • The dust-proof mesh of the panel is removable and washable.

Product Detail

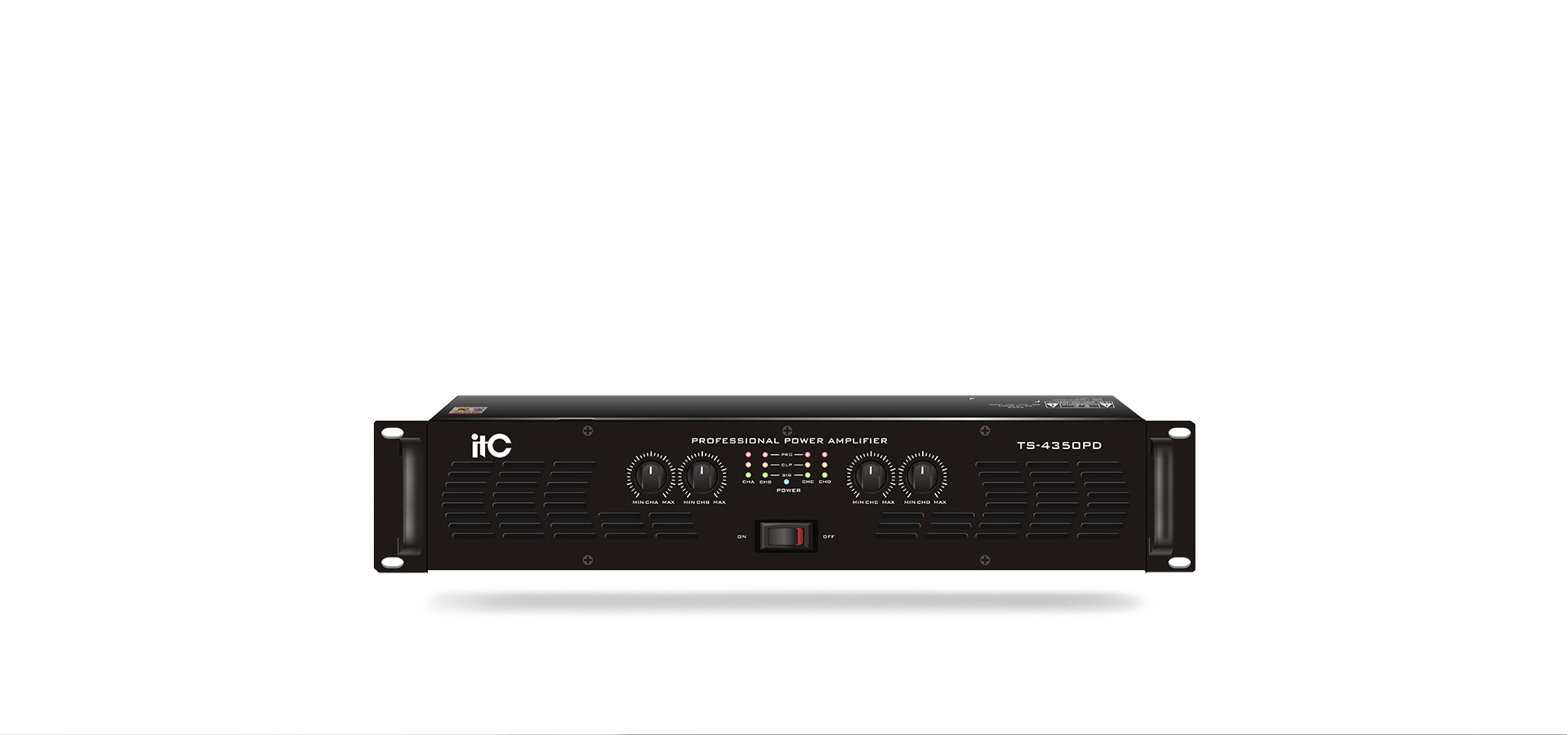

ModelTS-4350PD
Output power (20-20KHz/THD≤1%)

Stereo/Parallel 8Ω×4

200W×4
Output power (20-20KHz/THD≤1%)

Stereo/Parallel 4Ω×4

350W×4
Bridge 8ΩX2700W×2
ConnectionXLR, TRS interface
Voltage gain (@1KHz)34.4dB
Input sensitivity0.775V/1V/1.44V
Input impedance10KΩ unbalanced, 20KΩ balanced
Frequency response (@ 1W power)20-20KHz/+0/-2dB
THD+N (@1/8 power)≤0.05%
SNR (A-weighted)≥95dB
Damping coefficient (@ 1KHz)≥200@ 8Ω
Resolution (@1KHz)≥80dB
Protection methodOver current protection, DC protection, short circuit protection
IndicatorPower, protection, distortion
Cooling methodFan cooling
Power supply~ AC 220V  50Hz
Maximum power consumption1800W
Size483×350×88mm
Weight8.9Kg
