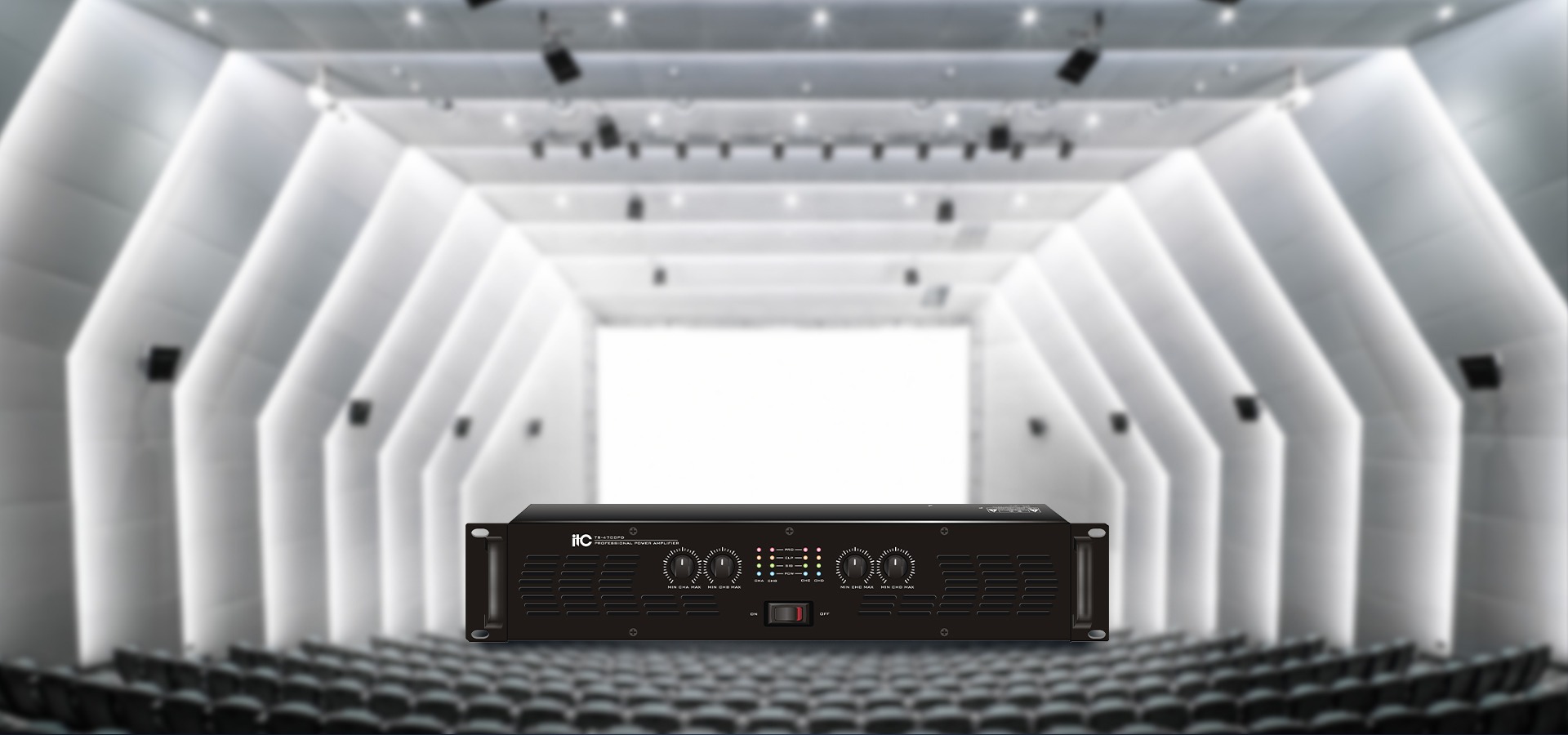

Application Scenarios:
Medium and large theaters, outdoor performances, theaters, stadiums, clubs, nightclubs, entertainment venues, bars, leases, auditoriums, banquet halls, concerts, etc.
Features
- Adopt the latest class D power amplifier design scheme, with low distortion and high efficiency;
- The power supply adopts switching power supply, which has high efficiency; soft start when starting to prevent the large current from being absorbed into the grid when starting up and disturbing other electrical equipment.
- Effectively suppress power harmonics and meet EU green power standards;
- Intelligent peak clipping limiter, control the power module and speaker system to work within a safe range;
- Standard XLR+TRS1/4″ composite input interface, simple interface is more convenient for different user needs.
- Turn on the power sequence to turn on the power amplifier function.
- The remote interface can use the central control system to turn on and off the power amplifier.
- * Built-in low-cut switch selection function.
- * Adapt to the needs of different occasions, optional stereo or parallel working mode.
- * With over-voltage protection, under-voltage protection, over-temperature voltage limit, over-temperature shutdown, over current voltage limit, over current shutdown, DC protection, output short circuit protection, temperature control fan, and other functions.


Product Detail
Model | TS-4700PD |
Output power(20-20KHz/THD≤1%) | a. stereo/parallel 8Ω×4: 500W×4
b. stereo/parallel 4Ω×4: 700W×4 |
Connection | XLR, TRS interface |
Voltage gain (@1KHz) | 36dB |
Input sensitivity | 1V |
Input impedance | 10KΩ unbalanced, 20KΩ balanced |
Frequency response(@1W power) | 20-20KHz/+0/-2dB |
THD+N (@1/8 power) | ≤0.05% |
SNR(A-weighted) | ≥100dB |
Damping coefficient(@ 1KHz) | ≥200@ 8 ohms |
Resolution (@1KHz) | ≥80dB |
Protection method | Over current protection, DC protection, short circuit protection |
Indicator | Power, protection, distortion |

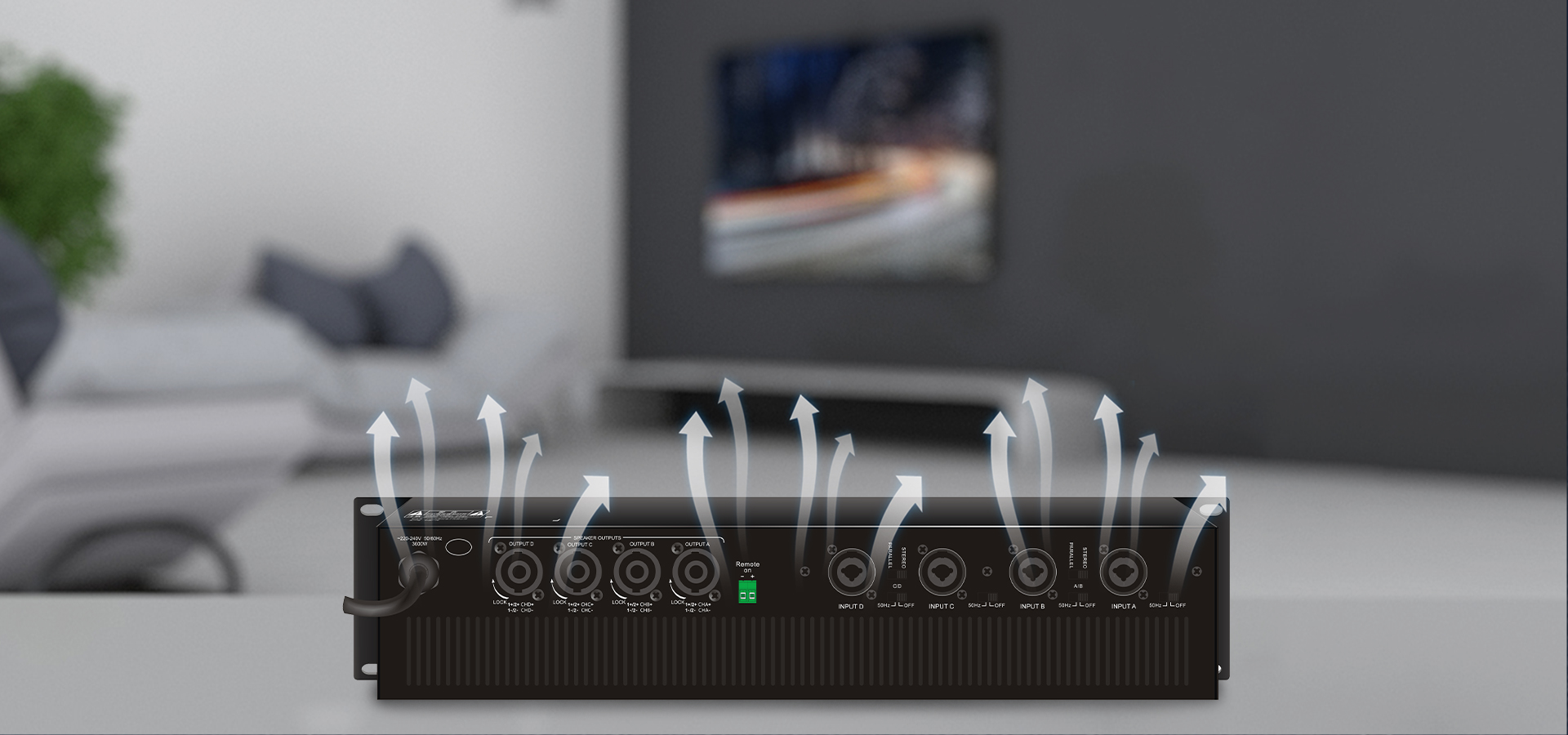

Cooling method | Fan cooling |
Power supply | ~220V 50Hz |
Maximum power consumption | 3600W |
Size | 483x405x88 mm |
Weight | 10.5Kg |
